GlobTek Introduces a New Family of 2kW (2,000W) High Efficiency Battery Chargers, Suitable for Multiple Chemistries Including Lead-acid, Li-ion, LiFePO4 along with the Capabilities to Charge modern Ultra-Capacitors. The series integrates Microprocessor Controlled Two Stage Constant Voltage (CV) and Constant Current (CC) Charging Technique, and offers universal AC input with active PFC and a standard choice of CANBus / RS485 / RS422 communication protocols. The GT-A2000-SVVVXXX series represents GlobTek’s entry into High-power range of battery charges, adding to our broad line of dedicated chargers including optimized solutions for our line of battery packs! GlobTek designs and manufactures single and multi-position battery chargers in both standard and custom configurations. These chargers are based on our knowledge and experience of power supply solutions coupled with leading edge technologies and the latest manufacturing techniques. Features include:
- Rugged Enclosed Metal Case
- Universal AC Input
- Power Factor Correction (PFC)
- High Efficiency
- Remote On/Off
- Microprocessor-controlled Power Management
- Support for Multi-rack Shelf Paralleling
- Current sharing

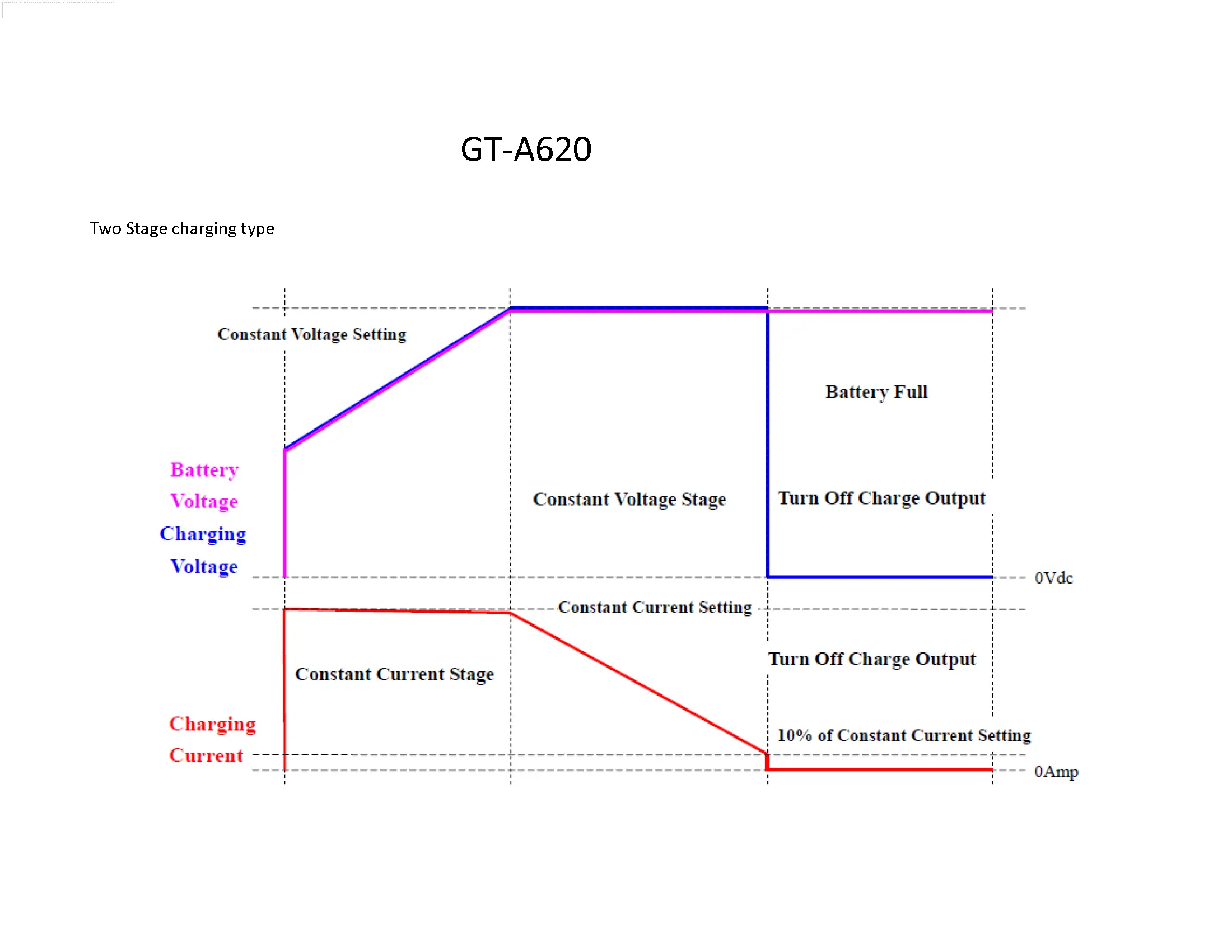

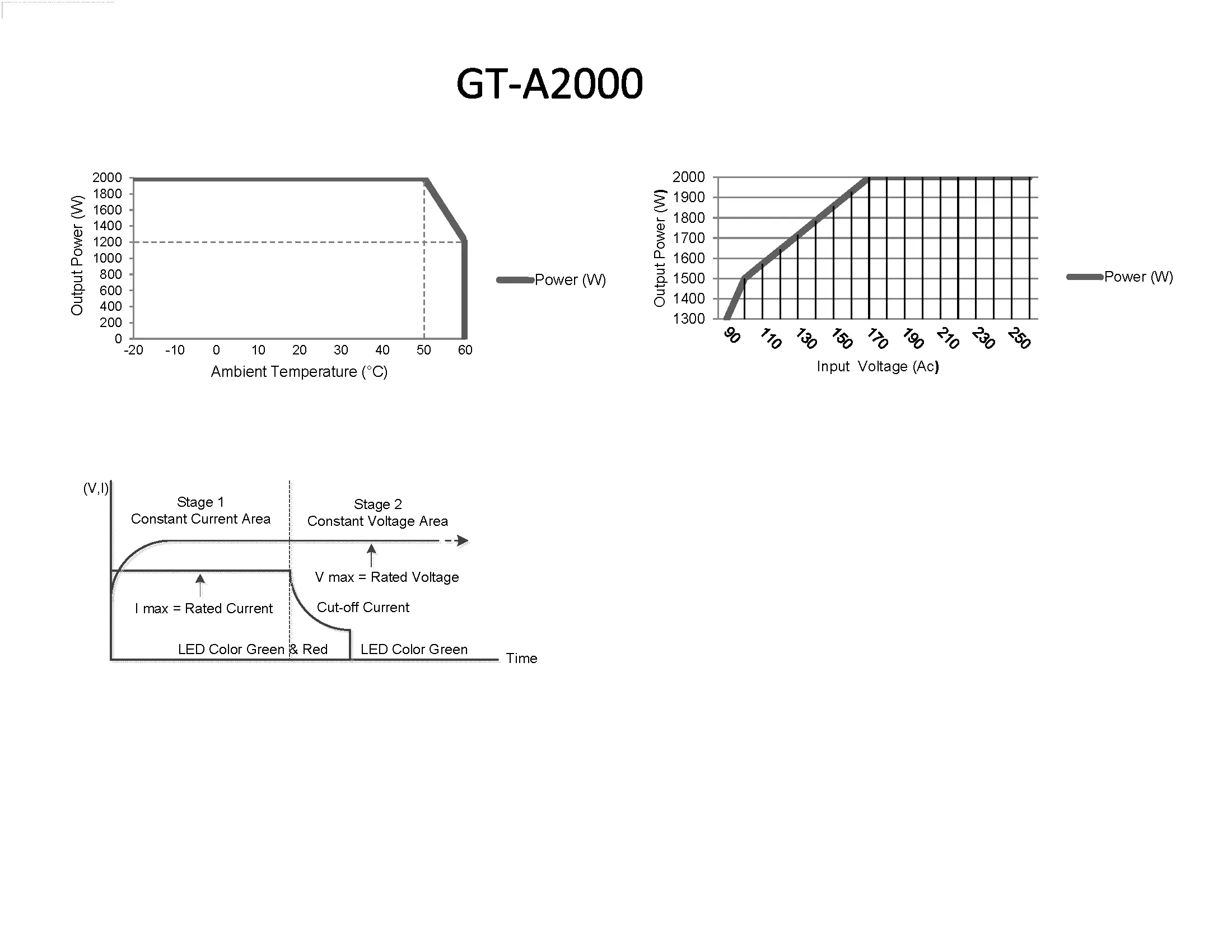

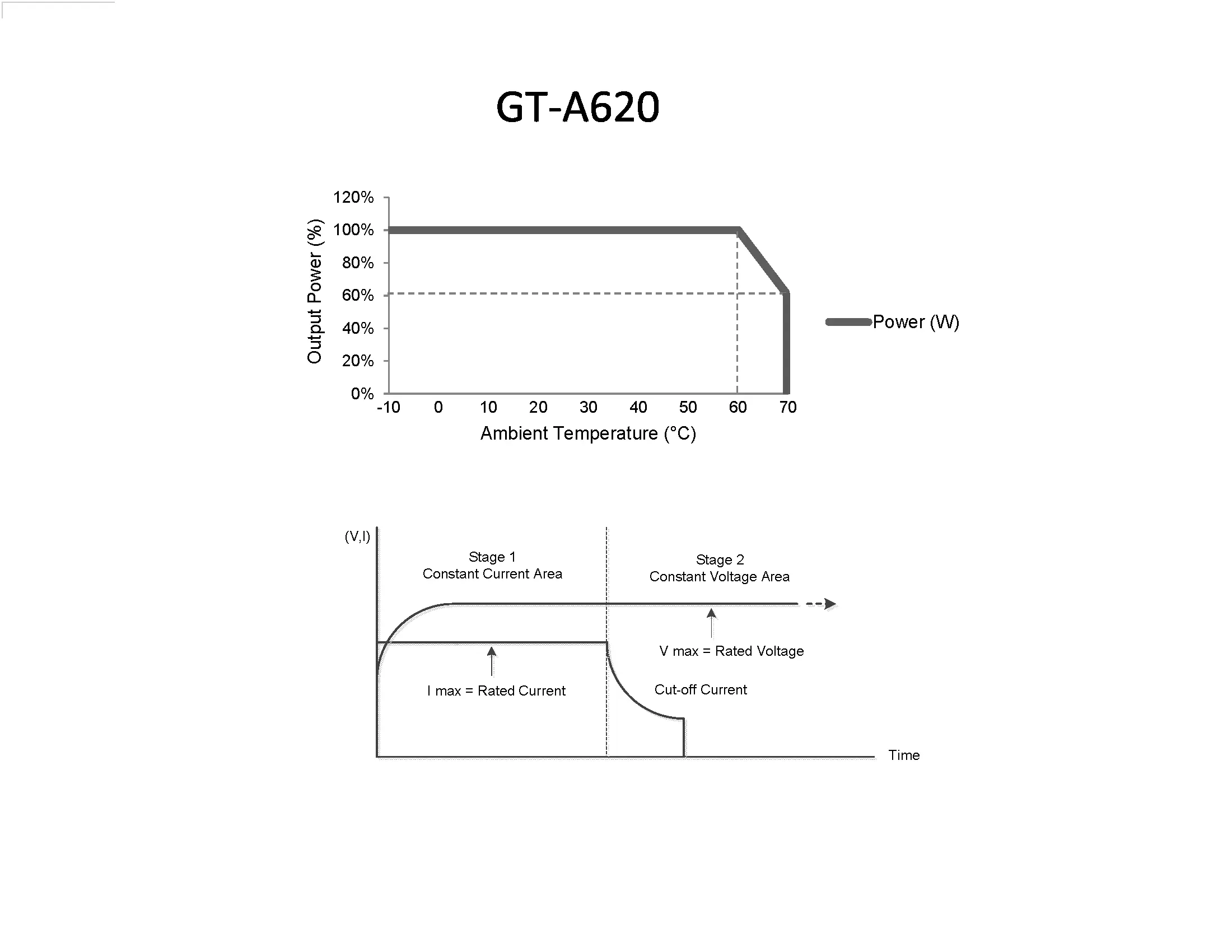

- 2 Stage Constant Voltage (CV) / Constant Current (CC) Charging
- Cut-Off Current is Software Programmable
- Over Current Protection (OCP) Software Programmable
- Wide Operating Temperature
- Reverse Polarity / Under-voltage, Over-voltage and Over-Temperature Protection
- LED Loading Indicator for Power & Charger Status
- CANBus/RS485/RS422 Interface
Typical applications include Industrial, Marine and Recreational Vehicles, such as Golf Carts, Hospital Carts, Multi-Media Lighting and Support Equipment, Digital Signage, Scoreboards, Substation back up battery charging and other High Power portable devices. GlobTek’s latest Lithium Ion battery charges implement multiple redundant safety features to prevent failure and damage to batteries and systems while mitigating risk and lengthening battery life. In response to increased concern and requirements of portable equipment and device manufacturers for safety related to Lithium Ion (Li-Ion) batteries, GlobTek’s latest generation battery charger designs include numerous redundant safety features which when communicating with electronics in Lithium (Li-Ion) batteries prevents failure or damage of the battery pack during charging. Aside from safety, the charger includes many features to maintain and lengthen battery life. GlobTek also provides multiple bay battery charge or cradle chargers designed to charge multiple packs in unison. Customers can specify a battery pack consisting of either pre-approved primary cells, or GlobTek can use its own selection of cells manufactured by our partners, which offer the best cost / performance / safety ratio. Our customized bespoke battery packs frequently feature built-in fuel gauge, and protection circuitry, where battery pack and cell temperature can be read from one of the registers inside the fuel gauge IC. GlobTek is a leading power systems solutions provider with state of the art design and manufacturing facilities in the USA and China along with sales offices in Germany, France, and the UK. Offering a line of power supply solutions for applications from gym equipment to medical systems, GlobTek can also develop and create custom power solutions for just about any application. GlobTek’s head office is located at 186 Veterans Drive, Northvale NJ 07647. For more information call 201-784-1000 or visit GlobTek online at www.globtek.com
