GTD93035L6013.2-F Desktop/External ICT/ITE Power Supply

GTD93035L6013.2-F
GTD93035L6013.2-F, ICT/ITE Power Supply, Desktop/External, DC-DC, , Input Rating: 9-60 VDC, 3 Positon Terminal Block, Output Rating: 60 Watts, Power rating with convection cooling (W) , 13.2V in 0.1V increments, Approvals: IRAM; UKCA; India BIS; WEEE; VCCI; Ukraine; EAC; CB 62368; CE; FCC; IP54; Salt Mist; Vibration Shock Bump; Saudi; South Africa; cETLus; AS/NZS; RCM; CU Kazakhstan; NOM; CCC; South Africa; Malaysia (pending); CB 60950;GTD93035L6013.2-F, ICT/ITE Power Supply, Desktop/External, DC-DC, , Input Rating: 9-60 VDC, 3 Positon Terminal Block, Output Rating: 60 Watts, Power rating with convection cooling (W) , 13.2V in 0.1V increments, Approvals: IRAM; UKCA; India BIS; WEEE; VCCI; Ukraine; EAC; CB 62368; CE; FCC; IP54; Salt Mist; Vibration Shock Bump; Saudi; South Africa; cETLus; AS/NZS; RCM; CU Kazakhstan; NOM; CCC; South Africa; Malaysia (pending); CB 60950;
Information
Model NumberGTD93035L6013.2-F
Agency Documentshttp://www.globtek.info/certs/GTD93035/
CE EC-Declaration for MedicalContact GlobTek for more information
CE EC-Declaration for Industrial/Commercial/ITEhttps://cs.globtek.info/ec_declaration?id=a0Oa000000C2WkZEAV
CE EC-Declaration for HouseholdContact GlobTek for more information
UKCA-Declaration for MedicalContact GlobTek for more information
UKCA-Declaration for Industrial/Commercial/ITEhttps://cs.globtek.info/ukca_declaration?id=a0Oa000000C2WkZEAV
UKCA-Declaration for HouseholdContact GlobTek for more information
Morocco SDoC Declarationhttps://cs.globtek.info/Morocco_SDoC_Declaration?id=a0Oa000000C2WkZEAV
RoHS/RoHS3 Declarationhttps://www.globtek.com/pdf/rohs_cert/a0Oa000000C2WkZEAV
Prop 65 Statementhttps://www.globtek.com/r2/PH7CNf
REACH Declarationhttps://www.globtek.com/r2/eM2co8
Conflict Minerals Declarationhttps://www.globtek.com/r2/vZY8R5
Model Parameters
TypeDesktop/External
TechnologyDC-DC
CategoryICT/ITE Power Supply
Input Voltage Range (V)9-60 VDC
Max Input Current (A)9.0 A
Max Output Power Rating (W)60
Output Voltage Range (V)13.2
EfficiencyN/A
Ingress Protection
Size (mm)180*95*63

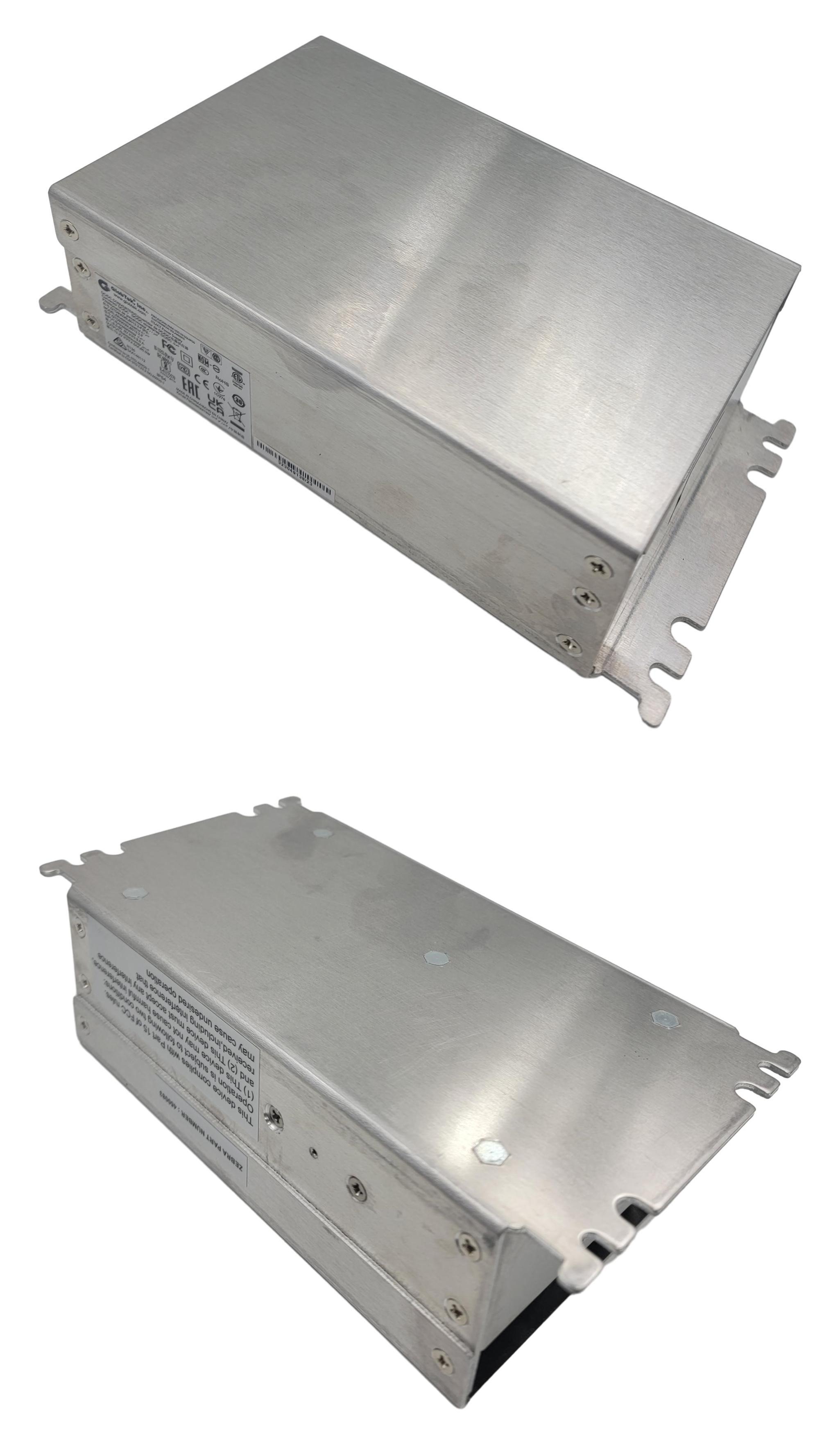

EnclosureUser-added image
Rating Table
Model Number (Final ordering #/Part No to be defined)Voltage (V)Current (A)Power (W)RFQ
GTD93035L6013.2-F*13.24.559.4
* (Final ordering #/Part No to be defined)
Specifications
A) ELECTRICAL SPECIFICATIONS:
1. Input Voltage: 9-60 Vdc
2. Output Regulation: +/- 1% measured at the output connector
3. Line Voltage Regulation: +/- 1% typical measured at full load
4. Output Ripple (Vp-p): 132mV maximum, measured at 20 MHz bandwidth with 0.1 uf ceramic capacitor in parallel with 10 uf electrolytic capacitor connected at the end of the output connector at nominal line
5. Turn-ON/OFF Overshoot: 5% maximum, 500uS typical recovery time for 25% to 50% step load
6. Turn-ON Delay: 3 Seconds, maximum @ full load, nominal line
7. Hold-Up Time: 5mS typical @ nominal input voltage and full load
8. Inrush Current: 60A maximum cold start @ 9Vdc input
9. Switching Frequency: 150 KHz typical
10. Efficiency: >75% at 9Vdc full load
>78% at 12Vdc full load
>80% at 12Vdc-60Vdc full load

11. Transient Response: 200uS to +/-1.5% max value @ 25% load step

B) PROTECTION
1. Over-Voltage: Protected latch type, input recycling required to recover
2. Short Circuit: Hiccup with auto recovery
3. Over-load: Hiccup with auto recovery
4. Input Protection: Input line and neutral fusing
5. Reverse Polarity Protection: Yes

C) SAFETY
1. Dielectric Withstand Voltage: 1600 Vdc from primary to secondary, primary to chassis, secondary to chassis


D) OTHER:
1. MTBF: 200,000 Hours @ 25°C ambient temperature
2. Operating Temperature: -30°C to 50°C ambient temperature
3. Humidity: 5% to 85% relative humidity
4. Storage Temperature: -40°C to 85°C
5. Cooling: Convection

E) ENCLOSURE
1. Housing: Rugged, vehicle mounted. Vibration, shock, contamination, water resistant. Aluminum
2. Size: 189*95*53mm
3. Markings: Label
4. Vibration: IEC 60068-2-64 Fh (Random)
5. Bump: IEC 60068-2-29 Eb
6. Waterproof: Not required. However, it should be water-resistant. Recommended IEC 60068-2-52
7. Contamination: Resistant to chemicals, rust, etc.
Derating Curve
Qty (ea.)/Carton12
Individual Box/Gift Box Size (mm)117*74*204
Individual Box/Gift Box ColorWhite
Master Carton Size (mm)430 x 370 x 190
Gross Weight (kg)15.2
Label Width (mm)50.0
Label Height (mm)28.0
Input Configuration
Description3 Positon Terminal BlockShanghai Elinker P/N: LG103-5.0
Output Configuration
Common output connector options:
Click to add to your request.
L Type (Coaxial 5.5x2.5mm plug)
C Type (Coaxial 5.5x2.1mm plug)
K Type (Coaxial 3.5x1.3mm plug)
LL Type (5.5x2.5mm Locking 760k type)
CL Type (5.5x2.1mm Locking S761k type)
Magnetic Connector
L Type (Coaxial 5.5x2.5mm plug)C Type (Coaxial 5.5x2.1mm plug)K Type (Coaxial 3.5x1.3mm plug)LL Type (5.5x2.5mm Locking 760k type)CL Type (5.5x2.1mm Locking S761k type)Magnetic Connector
YL3 Type (KPPX-3P)
YL4 Type (KPPX-4P)
EJ1/2/3/4/5 (EIAJ RC-5320A type connectors)
MSB Type (Micro USB)
Custom design
YL3 Type (KPPX-3P)YL4 Type (KPPX-4P)EJ1/2/3/4/5 (EIAJ RC-5320A type connectors)MSB Type (Micro USB)Inquire for custom design

Comprehensive list of GlobTek output cordset options

Contact GlobTek for your specific requirements or custom solutions.

Approvals

Below follows a link to the latest regulatory certifications and marks for this specific product. National standards as well as certification schemes are constantly changing and so is the set of certification marks and symbols applicable to this product. Various standards, marks and symbols, and certificates are subject to change at any time without notice.

Additional standards or unique country certifications are available upon request. Please contact Globtek to request a quotation.

LogoDescription
User-added image
PRECAUCION: PARA USO EN EQUIPOS ELECTRONICOS SOLAMENTE

IRAM certificate DC-E-G71-004.1 to IEC 62368-1:2014
User-added imageUKCA Certification
User-added image

Bureau Of Indian Standards for GTD93035
 User-added imageWEEE: Complies with EU 2012/19/EU (http://ec.europa.eu/environment/waste/weee/index_en.htm) Mark is on the label or Molded in the case
User-added imageJapan: Voluntary Control Council for Interference (VCCI)
User-added imageUkraine UKRSepro (Document: www.globtek.com/html/iso_certificates/GT_Ukraine.pdf)
User-added image  Certification # TC RU AR46.B.75423 Custom Union of Russia, Belarus and Kazakhstan

No Logo Applicable

CB for IEC 62368-1:2014 (3rd Edition)
User-added image  CE Mark: tested to comply with EN55022:2006/A1:2007 Class B, EN610003-2, EN610003-3 including EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6N EN61000-4-11; EMI: Complies with EN55011 CLASS B and FCC Part 15B - On label or Molded in case
User-added image
FCC PART 15 CLASS B
IP54Ingress Protection: ?IP54 to IEC60529:2001 Protected against dust - limited ingress (no harmful deposit) and Protected against sprays from all directions - limited ingress permitted
No LOGOSalt Mist to IEC 60068-2-52 Environmental testing Part 2: Tests- Test Kb: Salt mist, cyclic (sodium chloride solution)
No LOGOViration, Shock, Bump to IEC 60068-2-6:2007 -2-64:2008 -2-27:2008 -2-29 ed 2.0 Environmental testing Part 2 Tests

User-added image
Saudi Arabia approval to IEC 60950
 No LogoSouth Africa EMI and EMC approval to CISPR 22 Class B CISPR 24
User-added image

cETLus-Cert-60950-1 4007497 Listed
No Logo ApplicableAS/NZS 60950.1:2011
User-added image
RCM N136; Australia and New Zealand Regulatory Compliance, Mark (http://rcm.standards.org.au/rcmfaq/rcmfaq.htm
User-added image
адаптер питания
CU Kazakhstan Certificate
User-added imageNOM (Mexico) to NOM-001-SCFI-1993
User-added image CCC to GB4943.1-2011 GB9254-2008 GB17625.1-2012 with Tropical and Altitude above 2000m approval
 No LogoSouth Africa approval to SANS IEC 60950
No Logo Malaysia ST Release Letter GTD93035L6013.2-F GTD93035H6013.2-F (pending) IEC60950-1:2005 (ED.2) + A1:2009 No logo (pending)
No Logo CB Certificate IEC 60950-1:2005 2nd Edition + A1:2009 +A2:2013 Report to EN 60950-1:2006 +A11:2009 +A1:2010 + A12:2011 +A2:2013 For 5V-24V only
