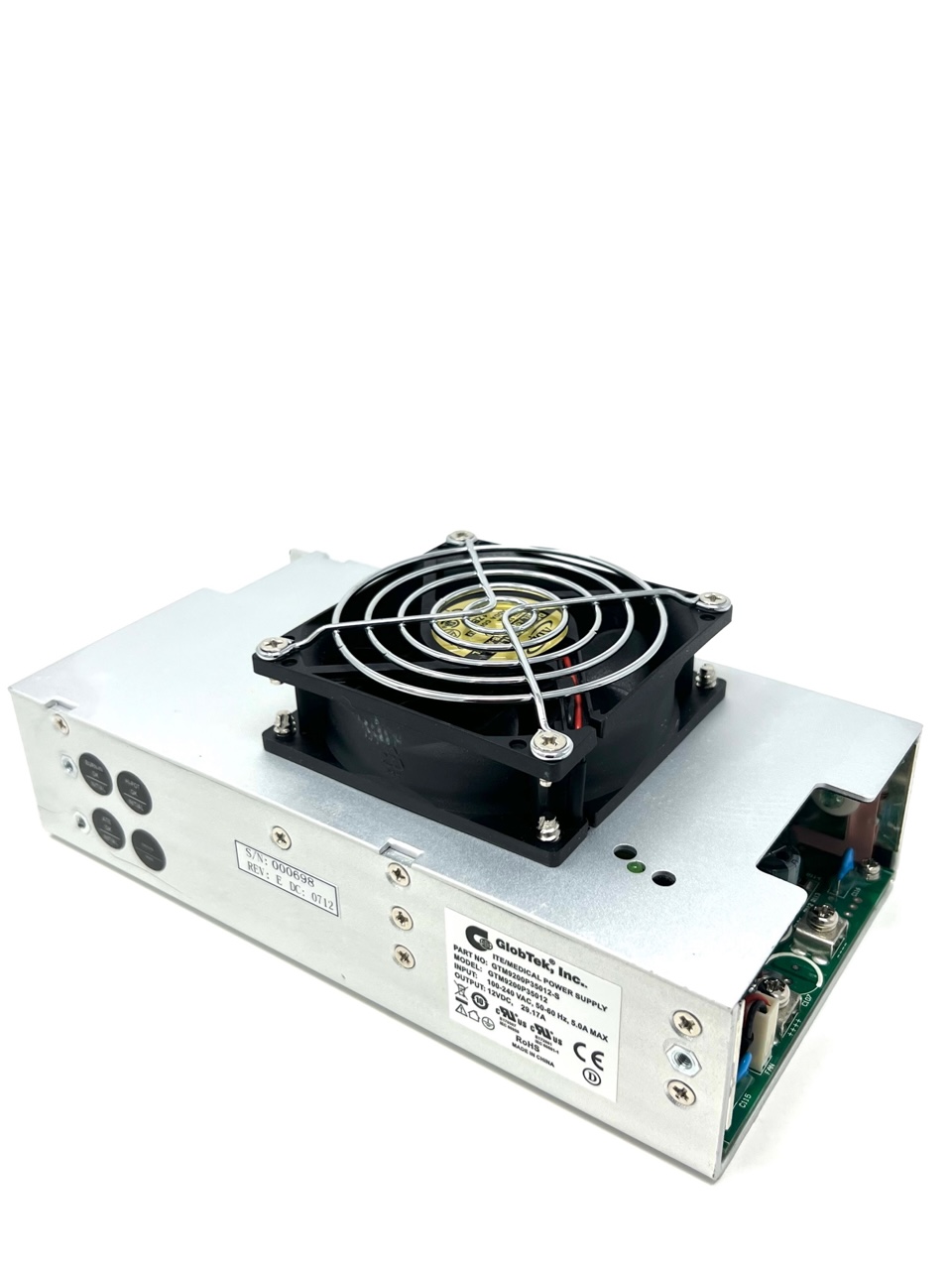

GTM9200P350VV-X.X-S Open Frame/Internal ICT / ITE / Medical Power Supply

GTM9200P350VV-X.X-S
GTM9200P350VV-X.X-S, ICT / ITE / Medical Power Supply, Open Frame/Internal, Regulated Switchmode AC-DC Power Supply AC Adaptor, , Input Rating: 100-240V~, 50-60 Hz, Molex 26-62-4051 5 Position Header Pin 1: earth, Pin 3:line, Pin 5:neutral, Pin 2 & 4 removed, Output Rating: 350 Watts, Power rating with convection cooling (W) , 5.0-48.0V in 0.1V increments, Approvals: Book 60601; cRUus; Ukraine; RoHS; WEEE; GOST-R; cRUus; China RoHS; CE;GTM9200P350VV-X.X-S, ICT / ITE / Medical Power Supply, Open Frame/Internal, Regulated Switchmode AC-DC Power Supply AC Adaptor, , Input Rating: 100-240V~, 50-60 Hz, Molex 26-62-4051 5 Position Header Pin 1: earth, Pin 3:line, Pin 5:neutral, Pin 2 & 4 removed, Output Rating: 350 Watts, Power rating with convection cooling (W) , 5.0-48.0V in 0.1V increments, Approvals: Book 60601; cRUus; Ukraine; RoHS; WEEE; GOST-R; cRUus; China RoHS; CE;
Information
Model NumberGTM9200P350VV-X.X-S
Agency Documentshttp://www.globtek.info/certs/GT(M)9200P/
CE EC-Declaration for MedicalContact GlobTek for more information
CE EC-Declaration for Industrial/Commercial/ITEhttps://cs.globtek.info/ec_declaration?id=a0O30000007P7ZREA0
CE EC-Declaration for HouseholdContact GlobTek for more information
UKCA-Declaration for MedicalContact GlobTek for more information
UKCA-Declaration for Industrial/Commercial/ITEhttps://cs.globtek.info/ukca_declaration?id=a0O30000007P7ZREA0
UKCA-Declaration for HouseholdContact GlobTek for more information
Morocco SDoC Declarationhttps://cs.globtek.info/Morocco_SDoC_Declaration?id=a0O30000007P7ZREA0
RoHS/RoHS3 Declarationhttps://www.globtek.com/pdf/rohs_cert/a0O30000007P7ZREA0
Prop 65 Statementhttps://www.globtek.com/r2/PH7CNf
REACH Declarationhttps://www.globtek.com/r2/eM2co8
Conflict Minerals Declarationhttps://www.globtek.com/r2/vZY8R5
Model Parameters
TypeOpen Frame/Internal
TechnologyRegulated Switchmode AC-DC Power Supply AC Adaptor
CategoryICT / ITE / Medical Power Supply
Input Voltage Range (V)100-240V~, 50-60 Hz
Max Input Current (A)5.0A Max
Max Output Power Rating (W)350
Output Voltage Range (V)5.0-48.0
EfficiencyN/A
Ingress Protection
Size (mm)198.4*107.2*46.5
EnclosureUser-added image



NOTES:
        1.    MEDICAL VERSION IS DESIGNED NOT TO BE USED IN SYSTEM WITH DIRECT PATIENT CONTACT.

        2.    ALL MEASUREMENTS ARE MADE DIRECTLY AT THE TERMINALS OF THE SUPPLY.

        3.    OUTPUT RIPPLE AND SPIKE ARE MEASURED DIRECTLY AT THE OUTPUT TERMINALS OF THE POWER SUPPLY
            WITH 10µF TANTALUM AND 0.1µF CERAMIC CAPACITORS CONNECTED IN PARALLEL. PEAK-TO-PEAK
            METERING EQUIPMENT MUST HAVE A 20 MHz FREQUENCY RESPONSE WITH PROBES AND CABLES THAT
            MAINTAIN A FREQUENCY RESPONSE OF 20Hz TO 20MHz.OUTPUT RIPPLE SPECS OF 3.3V, 5V AND 7.5V MODELS
            IS 3% OF RESPECTIVE OUTPUT VOLTAGE.

        4.    CONDUCTED AND RADIATED EMI WERE PERFORMED WITH RESISTIVE LOAD SET TO FULL.
             PSU AND RESISTIVE LOAD WERE MOUNTED TOGETHER  IN  30 x 30 x3 mm  ALUMINUM PLATE.
        5.    REMOTE SENSE WIRE SHOULD BE TWISTED TOGETHER WHEN USED.

        6.    ALL MEASUREMENTS ARE MADE AT 25°C AMBIENT TEMPERATURE AND ARE TYPICAL.

        7.    MOUNTING MAXIMUM INSERTION DEPTH IS 3MM.

        8.    GLOBTEK PRODUCTS ARE NOT AUTHORIZED TO BE USED AS MISSION CRITICAL COMPONENTS WITHOUT
             PRIOR WRITTEN APPROVAL FROM THE CEO OF GLOBTEK INC.

        9.    SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.




Rating Table
Model Number (Final ordering #/Part No to be defined)Voltage (V)Current (A)Power (W)RFQ
GTM9200P3505-S*570350
GTM9200P3507.5-S*7.546.67350.03
GTM9200P3509-S*938.89350.01
GTM9200P35012-S*1229.17350.04
GTM9200P35015-S*1523.33349.95
GTM9200P35018-S*1819.44349.92
GTM9200P35024-S*2414.58349.92
GTM9200P35036-S*369.72349.92
GTM9200P35048-S*487.29349.92
GTM9200P3507.5-1.5-S*646.67280.02
* (Final ordering #/Part No to be defined)
Specifications
FEATURES
· UNIVERSAL INPUT WITH ACTIVE POWER FACTOR CORRECTION
· MEDICAL AND ITE GRADE VERSIONS
· EN55022 CLASS B COMPLIANT
· EN55011 CLASS B COMPLIANT
· EN61000-4-2, -3, -4, -5, -6, -11 COMPLIANT
· BUILT-IN EMI FILTER
· OVERVOLTAGE PROTECTION
· OVERLOAD PROTECTION
· THERMAL OVERLOAD PROTECTION
· SINGLE OUTPUT WITH FAN COVER
· COMPACT 4.0" x 8.0" x 2.0" SIZE IN A U-CHANNEL

INPUT
1. INPUT VOLTAGE: Specified 90-264 Vac, Nameplate rated: 100-240Vac
2.INPUT FREQUENCY: Specified 47-63 Hz, Nameplate rated 50-60Hz
3.INPUT CURRENT:< 5A RMS @ 90VAC
4.INRUSH CURRENT: 40A TYPICAL, COLD START @ 25°C, 115VAC INPUT
5.EFFICIENCY:80% TYPICAL AT FULL LOAD
6.POWER FACTOR: 0.99 TYPICAL
7.TURN-ON DELAY: 2 SECOND TYPICAL @ 115VAC NOMINAL LINE
8.INPUT LINE PROTECTION: MOV TRANSIENT PROTECTED. INPUT LINE FUSE PROVIDED ON-BOARD
9.SOFT START:STANDARD ON ALL MODELS

OUTPUT
MAXIMUM POWER: 350WATTS, MAXIMUM
LOAD REGULATION: ± 2% MEASURED AT THE CONNECTOR SIDE
LINE REGULATON: ± 0.5% MEASURED AT THE CONNECTOR SIDE
HIGH FREQUENCY RIPPLE: 2% OF OUTPUT VOLTAGE, PEAK TO PEAK
TURN ON/OFF OVERSHOOT: 5% MAXIMUM, 1mS RECOVERY TIME
HOLD-UP TIME: 20 mS @ 350W LOAD, 115VAC NOMINAL LINE
TRANSIENT RESPONSE: 1mS RECOVERY TO WITHIN 1% OF THE REGULATION BAND WITH
NO MORE THAN 5% OUTPUT VOLTAGE DEVIATION @ 25% LOAD STEP

OVERLOAD PROTECTION: PROTECTED FOLDBACK METHOD
SHORT CIRCUIT: FOLDBACK, AUTORECOVER UPON REMOVAL OF SHORT
OVERVOLTAGE: 10- 50% ABOVE NOMINAL OUTPUT, LATCHED, NEED AC CYCLING TO RESTORE OUTPUT
INDICATOR:GREEN LED FOR OUTPUT PRESENCE

ENVIRONMENTAL
TEMPERATURE COEFFICIENT: ± 0.02% PER °C, TYPICAL
OPERATING TEMPERATURE: 0° TO 50°C
STORAGE TEMPERATURE: -40° TO 85°C
RELATIVE HUMIDITY: OPERATING; 0-90% NON-CONDENSING
ALTITUDE: UP TO 10000 FEET
RANDOM VIBRATION/TRANSIENT DROP: MIL-STD 810E
MTBF: 200,000 HOURS @ 25° AMBIENT TEMPERATURE
ROHS 2: COMPLIES WITH EU 2011/65/EU AND CHINA SJ/T 11363-2006

SAFETY
HIPOT (PRI-SEC): 5656 VDC FOR MEDICAL VERSION
EARTH LEAKAGE : < 0.3mA @ 50/60Hz, 264 VAC INPUT

APPROVAL
MEDICAL VERSION: UL60601-1 3-edition, CUL TO 22.2 NO. 60601-1
EMI: EN55022 CLASS B AND FCC PART 15, TESTED WITH RESISTIVE LOAD.
CE MARK:EN61000-3-2, EN61000-3-3 AND EN50082-1 INCLUDING EN61000-4-2 , EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-1


ENCLOSURE
1. Size: 198*107.2*46.5 mm +/- 1.0
2. Markings: Label and/or Pad Printed and/or Molded into Case
3. LED: Standard Green color to indicate power out (other colors available)
Derating CurveUser-added image
Qty (ea.)/Carton18
Individual Box/Gift Box Size (mm)218*117*85
Individual Box/Gift Box ColorWhite
Master Carton Size (mm)432 x 381 x 295
Gross Weight (kg)13.2
Label Width (mm)40.0
Label Height (mm)30.0
Input Configuration
DescriptionMolex 26-62-4051 5 Position Header Pin 1: earth, Pin 3:line, Pin 5:neutral, Pin 2 & 4 removed
     User-added image


Approvals

Below follows a link to the latest regulatory certifications and marks for this specific product. National standards as well as certification schemes are constantly changing and so is the set of certification marks and symbols applicable to this product. Various standards, marks and symbols, and certificates are subject to change at any time without notice.

Additional standards or unique country certifications are available upon request. Please contact Globtek to request a quotation.

LogoDescription
 User-added imageWEEE: Complies with EU 2012/19/EU (http://ec.europa.eu/environment/waste/weee/index_en.htm) Mark is on the label or Molded in the case
User-added image  CE Mark: tested to comply with EN 60601-1-2:2015 Medical electrical equipment Part 1-2: - Mark is on the label or Molded in the case
User-added imageCHINA SJ/T 11364-2014, China RoHS Chart: http://www.globtek.com/pdf/F-GT-DJD-8.4.1-006%20China%20RoHS%20Declaration%205-20-22.pdf
User-added imagecRUus Registered E170507 CSA C22.2 No. 60950-1 2nd Ed. (up to 30V)
User-added image
 		GOST-R mark for Russia(Document: http://www.globtek.com/html/iso_certificates/GT_GOST-R.pdf). 03/15/2015. Due to lack of demand, GlobTek will not be renewing it's GOST certification. Please contact your sales engineer for pricing on EAC.
User-added imageIndoor Use Only - Mark is on the label or Molded in the case
RoHSSpecifications of directive 2011/65/EU Annex VI (ROHS-2) with amendment 2015/863-EU (ROHS-3) http://www.ce-mark.com/Rohs%20final.pdf
User-added imageUkraine UKRSepro (Document: www.globtek.com/html/iso_certificates/GT_Ukraine.pdf)
User-added imagecRUus UL Recognized Component E172861 3rd Edition w-RM ANSI-AAMI ES60601-1 (2005 + C1:09 + A2:10) and CAN-CSA-C22.2 No. 60601-1 (2008)
User-added image60601-1 3rd Operating Instructions
User-added image
Protective Earth (ground)
