GTM962251PWWWVVX-XF Open Frame/Internal ICT / ITE / Medical Power Supply

Name: GTM962251PWWWVVX-XF
Creator: GlobTek

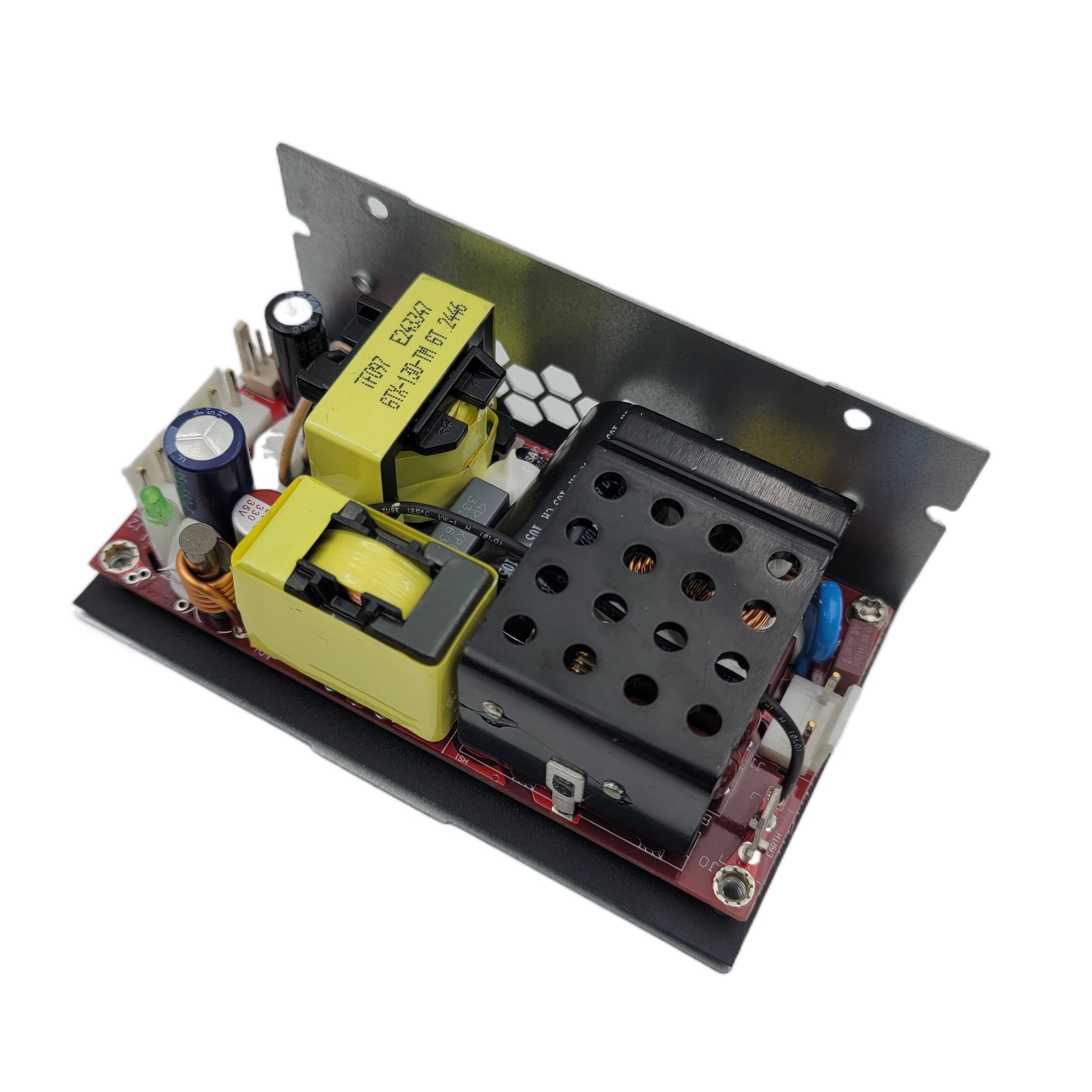

GTM962251PWWWVVX-XF

GTM962251PWWWVVX-XF, ICT / ITE / Medical Power Supply, 60601-1-4th Ed. , Open Frame/Internal, Regulated Switchmode AC-DC Power Supply AC Adaptor, Forced airflow for full rated power (CFM): 10CFM, Input Rating: 100-240V~, 50-60 Hz, , Output Rating: 225 Watts, Power rating with convection cooling (W) 140, 12-54V in 0.1V increments, Approvals: China RoHS; EAC; Level VI; RoHS; Ukraine; VCCI; WEEE; UKCA; CB 60601-1; Conforms to 62368-1; CB 60950; cETLus 60950-1; CB 62368; Morocco; ETL 62368; ETL; CE; CCC (pending);

Information

Model Number

GTM962251PWWWVVX-XF

Agency Documents

http://www.globtek.info/certs/GTM96225xP%20/

CE EC-Declaration for Medical

https://cs.globtek.info/ec_declaration?id=a0O0c00000Ph0MxEAJ

CE EC-Declaration for Industrial/Commercial/ITE

https://cs.globtek.info/ec_declaration?id=a0O0c00000Ph0MxEAJ

CE EC-Declaration for Household

Contact GlobTek for more information

UKCA-Declaration for Medical

https://cs.globtek.info/ukca_declaration?id=a0O0c00000Ph0MxEAJ

UKCA-Declaration for Industrial/Commercial/ITE

https://cs.globtek.info/ukca_declaration?id=a0O0c00000Ph0MxEAJ

UKCA-Declaration for Household

Contact GlobTek for more information

Morocco SDoC Declaration

https://cs.globtek.info/Morocco_SDoC_Declaration?id=a0O0c00000Ph0MxEAJ

RoHS/RoHS3 Declaration

https://www.globtek.com/pdf/rohs_cert/a0O0c00000Ph0MxEAJ

Prop 65 Statement

https://www.globtek.com/r2/PH7CNf

REACH Declaration

https://www.globtek.com/r2/eM2co8

Conflict Minerals Declaration

https://www.globtek.com/r2/vZY8R5

Model Parameters

Type

Open Frame/Internal

Technology

Regulated Switchmode AC-DC Power Supply AC Adaptor

Category

ICT / ITE / Medical Power Supply

Input Voltage Range (V)

100-240V~, 50-60 Hz

Max Input Current (A)

Max Output Power Rating (W)

225

Output Voltage Range (V)

12-54

Efficiency

USA DOE Level VI / Eco-design Directive 2009/125/EC, (EU) 2019/1782

Ingress Protection

Size (mm)

103.5 (L) x 62.3 (W) x 40.0 (H)

Enclosure

Customer may need to provide EMI shielding if not in metal chassis

3D File Download

https://www.globtek.com/dl/GTM962251PWWWVVX-XF.igs

Rating Table

Model Number (Final ordering #/Part No to be defined)	Voltage (V)	Current (A)	Power (W)
GTM962251P22512-F*	12	18.75	225
GTM962251P22554-F*	54	4.16	224.64
GTM962251P22554-FW*	54	4.16	224.64
GTM962251P22512-FW*	12	18.75	225
GTM962251P22554A-F*	54	4.17	225.18
GTM962251P22548-F*	48	4.69	225.12
GTM962251P22548A-F*	48	4.69	225.12
GTM962251P22538-F*	38	5.92	224.96
GTM962251P22538A-F*	38	5.92	224.96
GTM962251P22536-F*	36	6.25	225
GTM962251P22536A-F*	36	6.25	225
GTM962251P22533.5-F*	33.5	6.71	224.79
GTM962251P22530-F*	30	7.5	225
GTM962251P22530A-F*	30	7.5	225
GTM962251P22528-F*	28	8.03	224.84
GTM962251P22528A-F*	28	8.03	224.84
GTM962251P22524-F*	24	9.37	224.88
GTM962251P22524A-F*	24	9.37	224.88
GTM962251P22524A-FW*	24	9.37	224.88
GTM962251P22522-F*	22	10.22	224.84
GTM962251P22522A-F*	22	10.22	224.84
GTM962251P22520-F*	20	11.25	225
GTM962251P22519A-F*	19	11.84	224.96
GTM962251P22519-F*	19	11.84	224.96
GTM962251P22518A-F*	18	12.5	225
GTM962251P22518-F*	18	12.5	225
GTM962251P22516A-F*	16	14.06	224.96
GTM962251P22516-F*	16	14.06	224.96
GTM962251P22515A-F*	15	15	225
GTM962251P12015-F*	15	8	120
GTM962251P22512A-F*	12	18.75	225
GTM962251P22520A-F*	20	11.25	225
GTM962251P22524-FW*	24	9.375	225
