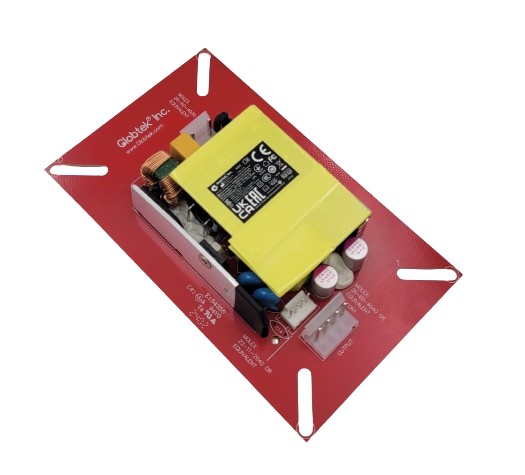

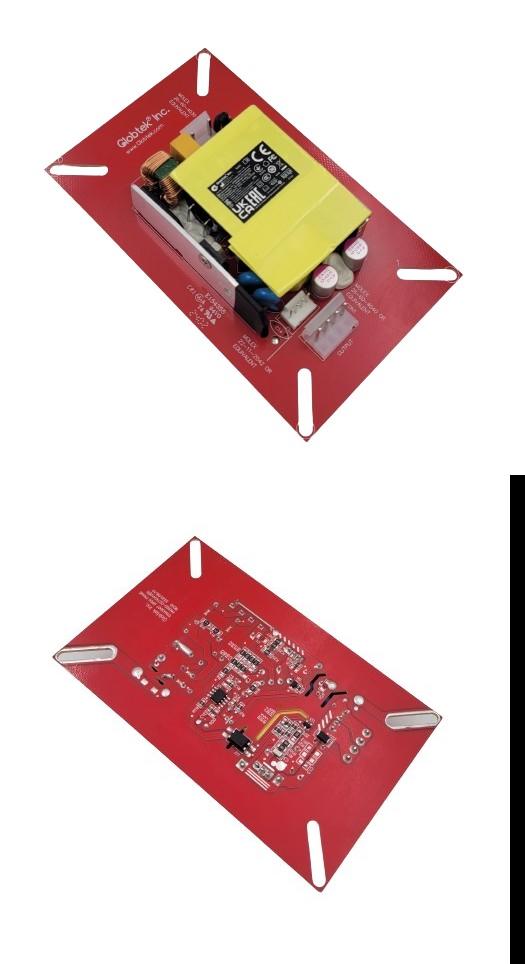

GTM43007-CWWVV-FW Open Frame/Internal ICT / ITE / Medical Power Supply

Name: GTM43007-CWWVV-FW
Creator: GlobTek

GTM43007-CWWVV-FW

GTM43007-CWWVV-FW, ICT / ITE / Medical Power Supply, 60601-1-4th Ed. , Open Frame/Internal, Regulated Switchmode AC-DC Power Supply AC Adaptor, , Input Rating: 100-240V~, 50-60 Hz, Molex 26-60-4030 3 Position Header Pin 1: Line, Pin 2: Removed, PIN 3: Neutral, Output Rating: 60 Watts, Power rating with convection cooling (W) , 5-48V in 0.1V increments, Approvals: CB 62368; ETL 62368; EAC; UKCA; Conforms to 62368-1; CCC; Book 60601; CB 60601-1 2MOPP (6W max); CE; China RoHS; Double Insulation; RoHS; Ukraine; WEEE; CE; FCC; Fuse 60335; CB 60950; CB EN/IEC 60335-1; Fuse 60335; Level V; LPS 60950; WDaE; cETLus ES60601; cETLus; cETLus 60601-1 3rd;

Information

Model Number

GTM43007-CWWVV-FW

Agency Documents

http://www.globtek.info/certs/GTM43007/

CE EC-Declaration for Medical

https://cs.globtek.info/ec_declaration?id=a0Oa000000MgcAQEAZ

CE EC-Declaration for Industrial/Commercial/ITE

https://cs.globtek.info/ec_declaration?id=a0Oa000000MgcAQEAZ

CE EC-Declaration for Household

Contact GlobTek for more information

UKCA-Declaration for Medical

https://cs.globtek.info/ukca_declaration?id=a0Oa000000MgcAQEAZ

UKCA-Declaration for Industrial/Commercial/ITE

https://cs.globtek.info/ukca_declaration?id=a0Oa000000MgcAQEAZ

UKCA-Declaration for Household

Contact GlobTek for more information

Morocco SDoC Declaration

https://cs.globtek.info/Morocco_SDoC_Declaration?id=a0Oa000000MgcAQEAZ

RoHS/RoHS3 Declaration

https://www.globtek.com/pdf/rohs_cert/a0Oa000000MgcAQEAZ

Prop 65 Statement

https://www.globtek.com/r2/PH7CNf

REACH Declaration

https://www.globtek.com/r2/eM2co8

Conflict Minerals Declaration

https://www.globtek.com/r2/vZY8R5

Model Parameters

Type

Open Frame/Internal

Technology

Regulated Switchmode AC-DC Power Supply AC Adaptor

Category

ICT / ITE / Medical Power Supply

Input Voltage Range (V)

100-240V~, 50-60 Hz

Max Input Current (A)

1.5A

Max Output Power Rating (W)

Output Voltage Range (V)

5-48

Efficiency

N/A

Ingress Protection

N/A

Size (mm)

127x76.2x23.6

Enclosure

Top Diagram is for 5V-14V models, Bottom Diagram is for 15V-48V models

User-added image

3D File Download

">https://www.globtek.com/file/dl/GTM43007-C.zip

Rating Table

Model Number (Final ordering #/Part No to be defined)	Voltage (V)	Current (A)	Power (W)
GTM43007-C6036-6.0-FW*	30	2	60
GTM43007-C4512-2.0-FW*	10	4.5	45
GTM43007-C6024-5.0-FW*	19	3.15	59.85
GTM43007-C6048-8.0-FW*	40	1.5	60
GTM43007-C4512-FW*	12	3.75	45
GTM43007-C6048-FW*	48	1.25	60
GTM43007-C6012-FW*	12	5	60
GTM43007-C4509-FW*	9	5	45
GTM43007-C6036-FW*	36	1.66	59.76
GTM43007-C6024-4.0-FW*	20	3	60
GTM43007-C6018-FW*	18	3.33	59.94
GTM43007-C6015-FW*	15	4	60
GTM43007-C3809-1.5-FW*	7.5	5	37.5
GTM43007-C3005-FW*	5	6	30
GTM43007-C3007-1.0-FW*	6	5	30
GTM43007-C6024-FW*	24	2.5	60
GTM43007-C4509-1.5-FW*	7.5	6	45
GTM43007-C3007-FW*	7	4.3	30.1
GTM43007-C3809-1.5-FW*	7.5	5	37.5
GTM43007-C6048-FW*	48	1.25	60
GTM43007-C3007-1.0-FW*	6	5	30
GTM43007-C6036-6.0-FW*	30	2	60
GTM43007-C4509-FW*	9	5	45
GTM43007-C3005-FW*	5	6	30
GTM43007-C6018-FW*	18	3.33	59.94
GTM43007-C4509-1.5-FW*	7.5	6	45
GTM43007-C6036-FW*	36	1.66	59.76
GTM43007-C6012-FW*	12	5	60
GTM43007-C4512-2.0-FW*	10	4.5	45
GTM43007-C3007-FW*	7	4.3	30.1
GTM43007-C6024-FW*	24	2.5	60
GTM43007-C4512-FW*	12	3.75	45
GTM43007-C6024-4.0-FW*	20	3	60
GTM43007-C6024-5.0-FW*	19	3.15	59.85
GTM43007-C6015-FW*	15	4	60
GTM43007-C6048-8.0-FW*	40	1.5	60
GTM43007-C3809-1.5-FW*	7.5	5	37.5
GTM43007-C6048-FW*	48	1.25	60
GTM43007-C3007-1.0-FW*	6	5	30
GTM43007-C6036-6.0-FW*	30	2	60
GTM43007-C4509-FW*	9	5	45
GTM43007-C3005-FW*	5	6	30
GTM43007-C6018-FW*	18	3.33	59.94
GTM43007-C4509-1.5-FW*	7.5	6	45
GTM43007-C6036-FW*	36	1.66	59.76
GTM43007-C6012-FW*	12	5	60
GTM43007-C4512-2.0-FW*	10	4.5	45
GTM43007-C3007-FW*	7	4.3	30.1
GTM43007-C6024-FW*	24	2.5	60
GTM43007-C4512-FW*	12	3.75	45
GTM43007-C6024-4.0-FW*	20	3	60
GTM43007-C6024-5.0-FW*	19	3.15	59.85
GTM43007-C6015-FW*	15	4	60
GTM43007-C6048-8.0-FW*	40	1.5	60
GTM43007-C3809-1.5-FW*	7.5	5	37.5
GTM43007-C6048-FW*	48	1.25	60
GTM43007-C3007-1.0-FW*	6	5	30
GTM43007-C6036-6.0-FW*	30	2	60
GTM43007-C4509-FW*	9	5	45
GTM43007-C3005-FW*	5	6	30
GTM43007-C6018-FW*	18	3.33	59.94
GTM43007-C4509-1.5-FW*	7.5	6	45
GTM43007-C6036-FW*	36	1.66	59.76
GTM43007-C6012-FW*	12	5	60
GTM43007-C4512-2.0-FW*	10	4.5	45
GTM43007-C3007-FW*	7	4.3	30.1
GTM43007-C6024-FW*	24	2.5	60
GTM43007-C4512-FW*	12	3.75	45
GTM43007-C6024-4.0-FW*	20	3	60
GTM43007-C6024-5.0-FW*	19	3.15	59.85
GTM43007-C6015-FW*	15	4	60
GTM43007-C6048-8.0-FW*	40	1.5	60
GTM43007-C3809-1.5-FW*	7.5	5	37.5
GTM43007-C6048-FW*	48	1.25	60
GTM43007-C3007-1.0-FW*	6	5	30
GTM43007-C6036-6.0-FW*	30	2	60
GTM43007-C4509-FW*	9	5	45
GTM43007-C3005-FW*	5	6	30
GTM43007-C6018-FW*	18	3.33	59.94
GTM43007-C4509-1.5-FW*	7.5	6	45
GTM43007-C6036-FW*	36	1.66	59.76
GTM43007-C6012-FW*	12	5	60
GTM43007-C4512-2.0-FW*	10	4.5	45
GTM43007-C3007-FW*	7	4.3	30.1
GTM43007-C6024-FW*	24	2.5	60
GTM43007-C4512-FW*	12	3.75	45
GTM43007-C6024-4.0-FW*	20	3	60
GTM43007-C6024-5.0-FW*	19	3.15	59.85
GTM43007-C6015-FW*	15	4	60
GTM43007-C6048-8.0-FW*	40	1.5	60
GTM43007-C3809-1.5-FW*	7.5	5	37.5
GTM43007-C6048-FW*	48	1.25	60
GTM43007-C3007-1.0-FW*	6	5	30
GTM43007-C6036-6.0-FW*	30	2	60
GTM43007-C4509-FW*	9	5	45
GTM43007-C3005-FW*	5	6	30
GTM43007-C6018-FW*	18	3.33	59.94
GTM43007-C4509-1.5-FW*	7.5	6	45
GTM43007-C6036-FW*	36	1.66	59.76
GTM43007-C6012-FW*	12	5	60
GTM43007-C4512-2.0-FW*	10	4.5	45
GTM43007-C3007-FW*	7	4.3	30.1
GTM43007-C6024-FW*	24	2.5	60
GTM43007-C4512-FW*	12	3.75	45
GTM43007-C6024-4.0-FW*	20	3	60
GTM43007-C6024-5.0-FW*	19	3.15	59.85
GTM43007-C6015-FW*	15	4	60
GTM43007-C6048-8.0-FW*	40	1.5	60
GTM43007-C6012-FW*	12	5	60
GTM43007-C3007-1.0-FW*	6	5	30
GTM43007-C3809-1.5-FW*	7.5	5	37.5
GTM43007-C4512-2.0-FW*	10	4.5	45
GTM43007-C6024-5.0-FW*	19	3.15	59.85
GTM43007-C6024-4.0-FW*	20	3	60
GTM43007-C6036-6.0-FW*	30	2	60
GTM43007-C6048-8.0-FW*	40	1.5	60
GTM43007-C3005-FW*	5	6	30
GTM43007-C3007-FW*	7	4.3	30.1
GTM43007-C4509-FW*	9	5	45
GTM43007-C4512-FW*	12	3.75	45
GTM43007-C6015-FW*	15	4	60
GTM43007-C6018-FW*	18	3.33	59.94
GTM43007-C6024-FW*	24	2.5	60
GTM43007-C6036-FW*	36	1.66	59.76
GTM43007-C6048-FW*	48	1.25	60
GTM43007-C4509-1.5-FW*	7.5	6	45
GTM43007-C3809-1.5-FW*	7.5	5	37.5
GTM43007-C6048-FW*	48	1.25	60
GTM43007-C3007-1.0-FW*	6	5	30
GTM43007-C6036-6.0-FW*	30	2	60
GTM43007-C4509-FW*	9	5	45
GTM43007-C3005-FW*	5	6	30
GTM43007-C6018-FW*	18	3.33	59.94
GTM43007-C4509-1.5-FW*	7.5	6	45
GTM43007-C6036-FW*	36	1.66	59.76
GTM43007-C6012-FW*	12	5	60
GTM43007-C4512-2.0-FW*	10	4.5	45
GTM43007-C3007-FW*	7	4.3	30.1
GTM43007-C6024-FW*	24	2.5	60
GTM43007-C4512-FW*	12	3.75	45
GTM43007-C6024-4.0-FW*	20	3	60
GTM43007-C6024-5.0-FW*	19	3.15	59.85
GTM43007-C6015-FW*	15	4	60
GTM43007-C6048-8.0-FW*	40	1.5	60
GTM43007-C3809-1.5-FW*	7.5	5	37.5
GTM43007-C6048-FW*	48	1.25	60
GTM43007-C3007-1.0-FW*	6	5	30
GTM43007-C6036-6.0-FW*	30	2	60
GTM43007-C4509-FW*	9	5	45
GTM43007-C3005-FW*	5	6	30
GTM43007-C6018-FW*	18	3.33	59.94
GTM43007-C4509-1.5-FW*	7.5	6	45
GTM43007-C6036-FW*	36	1.66	59.76
GTM43007-C6012-FW*	12	5	60
GTM43007-C4512-2.0-FW*	10	4.5	45
GTM43007-C3007-FW*	7	4.3	30.1
GTM43007-C6024-FW*	24	2.5	60
GTM43007-C4512-FW*	12	3.75	45
GTM43007-C6024-4.0-FW*	20	3	60
GTM43007-C6024-5.0-FW*	19	3.15	59.85
GTM43007-C6015-FW*	15	4	60
GTM43007-C6048-8.0-FW*	40	1.5	60

* (Final ordering #/Part No to be defined)

Specifications

A) ELECTRICAL SPECIFICATIONS:
01. Input Voltage: Specified 90-264 Vac, Nameplate rated: 100-240Vac
02. Input Frequency: Specified 47-63 Hz, Nameplate rated 50-60Hz
03. Output Regulation: +/- 3% measured at the output connector
04. Line Voltage Regulation: +/- 0.5% maximum measured at full load
05. Output Ripple (Vp-p): +/- 1% of output voltage, Vp-p, max
06. Turn-ON/OFF: 5% maximum,1 mS typical recovery time for 25% step load
07. Turn-ON Delay: 1 Sec max
08. Hold-Up Time:10 mS typical @ nominal input voltage and full load
09. Inrush Current: 80A maximum @ 115 Vac input, 160A maximum @ 230 Vac input
10. Switching Frequency: 65 KHz typical
11. Efficiency: 87% @115Vac, 89% @ 230Vac typical at full load
12. No Load Power: < 300mW @ 230Vac

B) PROTECTION
01. Overvoltage Protection: 110% to 130% of nominal output voltage, and less than 60Vdc
02. Short Circuit/Over-load: momentary short circuit protected, output will auto recover upon removal of short

C) SAFETY
01. Dielectric Withstand Voltage: 4000Vac / 5656Vdc from primary to secondary
02. Earth Leakage Current: Does not exceed 300uA in NORMAL CONDITION and 1000uA in SINGLE FAULT CONDITION
03. Output Leakage Current: Does not exceed 75uA NC(Normal condition) 300uA SFC(single fault condition)
05. Earth continuity test:<0.1 Ohm, Class I Only
06. Mode of operation: Continuous
07. Means of Protection: 2 x MOPP
08. Compliant Standards: See listings at end of this drawing for specifics

D) EMC
EN 60601-1-2, 4^th edition
Emissions, per EN 55032, EN 61000-6-3, EN 61000-6-4
Conducted Emissions: Class B, FCC Part 15, Class B
Radiated Emissions: Class B, FCC Part 15, Class B
Line Frequency Harmonics EN61000-3-2, Class A
Voltage Fluctuations/Flicker EN61000-3-3

Immunity, per EN 55024, EN 61000-6-1, EN 61000-6-2
Static Discharge Immunity EN61000-4-2, 10kV Contact Discharge, 20kV air discharge
Radiated RF Immunity EN61000-4-3, 10V/m 80-1000MHz, 3V/m 1-2.7GHz, 80% 1KHz AM.
EFT/Burst Immunity EN61000-4-4, 4kV/100kHz.
Line Surge Immunity EN61000-4-5, 2kV differential, 4kV common-mode
Conducted RF Immunity EN61000-4-6, 3Vrms, 80% 1KHz AM
Power Frequency Magnetic Field Immunity EN61000-4-8, 3A/m
Voltage Dip Immunity EN61000-4-11, Criteria

E) OTHER
01. MTBF: 1,000,000 Hours @ 45°C ambient temperature, Full Load
02. Operating Temperature: -10°C to 45°C ambient temperature
03. Humidity: 0% to 95% relative humidity
04. Storage Temperature: -30°C to 80°C
05. Cooling: Convection
06: Elevation: 5000M
07. ROHS: Complies with EU 2011/65/EU amended by EU 2015/863 and China SJ/T 11363-2006

F) MECHANICAL FORMAT
01. Type: Open Frame
02. Size: A suffix version, (2”x3”), 76.2 x 50.8 x 30.5 mm
03. Size: B suffix version, (2”x4”), 101.6 x 50.8 x 30.5 mm
04. Size: C suffix version, (3”x5”), 127.0 x 76.2 x 30.5 mm

G) SPECIAL OPTIONS
01. Custom Label Markings
02. Short term Output Surge Capability
03. Reduced Leakage Current versions
04. Tightened output voltage tolerance
05. Reduced output ripple level
06. High Rel PCB laminate with Plated through Holes for IPC610 Class 2 Compliance
07. Low Temperature operation, down to -40°C
08. Quasi Constant Current Output, for Lead-Acid Battery Charger Applications
09. Special Input or Output Connectors
10. Over-Temperature Protection, Latched Shut-Down

Derating Curve

Qty (ea.)/Carton

Individual Box/Gift Box Size (mm)

147*100*33

Individual Box/Gift Box Color

White

Master Carton Size (mm)

455 x 415 x 210

Gross Weight (kg)

Label Width (mm)

null

Label Height (mm)

null

Input Configuration

Description

Molex 26-60-4030 3 Position Header Pin 1: Line, Pin 2: Removed, PIN 3: Neutral
User-added image

Optional Input Wiring Kits are available:

PN/Ordering No	Length	End A	End B
XHP410070M7MLX3(R)	70	JST XHP-4	Molex 09-93-0300
C810070M6MLX3(R)	60	IEC60320 C8	Molex 09-93-0300
C1410070M6MLX3(R)	60	IEC60320 C14	Molex 09-93-0300

Custom lengths, construction, cable types, ferrites, filters, and termination available upon request.

Approvals

Below follows a link to the latest regulatory certifications and marks for this specific product. National standards as well as certification schemes are constantly changing and so is the set of certification marks and symbols applicable to this product. Various standards, marks and symbols, and certificates are subject to change at any time without notice.

Additional standards or unique country certifications are available upon request. Please contact Globtek to request a quotation.

Logo	Description
Medical 4th Ed.	EN/IEC 60601-1-2, 4th Edition (Please visit EMC reports for further info)
No Logo Applicable	CB for IEC 62368-1:2014 (Second Edition)
	Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [UL 62368-1:2014 Ed.2] Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [CSA C22.2#62368-1:2014 Ed.2]
	Certification # TC RU AR46.B.69004 Custom Union of Russia, Belarus and Kazakhstan
	UKCA Certification
Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1	Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1
	CCC Altitude up to 5000 m GB17625.1-2012, GB4943.1-2011, GB/T9254-2008 for GT*43007
	60601-1 3rd Operating Instructions
No Logo Applicable	CB report IEC60601-1 2005 A1+C1+C2 2016-2-4 and or EN 60601-1:2006 3.1rd Edition 2xMOPP (6W max)
	CE Mark: tested to comply with EN 60601-1-2:2015 Medical electrical equipment Part 1-2: - Mark is on the label or Molded in the case
	CHINA SJ/T 11364-2014, China RoHS Chart: http://www.globtek.com/pdf/F-GT-DJD-8.4.1-006%20China%20RoHS%20Declaration%205-20-22.pdf
	null
	Indoor Use Only - Mark is on the label or Molded in the case
RoHS	Specifications of directive 2011/65/EU Annex VI (ROHS-2) with amendment 2015/863-EU (ROHS-3) http://www.ce-mark.com/Rohs%20final.pdf
	Ukraine UKRSepro (Document: www.globtek.com/html/iso_certificates/GT_Ukraine.pdf)
	WEEE: Complies with EU 2012/19/EU (http://ec.europa.eu/environment/waste/weee/index_en.htm) Mark is on the label or Molded in the case
	CE Certification CE Mark: tested to comply with EN 55032.2012+AC.2013 EN 61000-3-2.2014 EN 61000-3-3.2013 EN 60601-1-2.2015 EN 55024.2010
	FCC PART 15 CLASS B
	Book 60335 up to 36 Volts
No Logo	CB Report EN60950-1
No Logo Applicable	CB to 60335-1 5th Edition (Safety of Household and Similar Electrical Appliances, Part 1: General Requirements) CB Report/ Certificate IEC 60335-1:2010 Up to 36 volts only
	Fuse 60335 T2.0A 250VAC Up to 36 volts
	Efficiency: complies to section 301 of Energy Independence and Security Act (EISA) complies with Energy Star tier 2 (North America), ECP tier 2 (China), MEPS tier 2 (Australia), Code of Conduct (Europe)
LPS	Limited Power Source 60950
WDaE	Appliances can be used in warm damp equable climates
Conforms to ANSI/AAMI ES 60601-1:2005 Cert.to CAN/CSA Std. C22.2	cETLus ANSI_AAMI ES60601-1_2005
	Conforms to ANSI/UL Std. 60950-1 2nd Edition Cert. to CAN/CSA Std.C22.2 NO.60950-1 2nd Edition
	cETLus-Cert-4007497 ANSI/AAMI ES60601-1:2005/A1:2012 Issued: 2012/08/20 Medical electrical equipment ? Part 1: Amendment 1; CAN/CSAC22.2 No. 60601-1:14, Third Edition Issued: 2014/03/01 - Medical Electrical Equipment - Part 1
No Logo Applicable	CB for IEC 62368-1:2014 (Second Edition)
	Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [UL 62368-1:2014 Ed.2] Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [CSA C22.2#62368-1:2014 Ed.2]
	Certification # TC RU AR46.B.69004 Custom Union of Russia, Belarus and Kazakhstan
	UKCA Certification
Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1	Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1
	CCC Altitude up to 5000 m GB17625.1-2012, GB4943.1-2011, GB/T9254-2008 for GT*43007
	60601-1 3rd Operating Instructions
No Logo Applicable	CB report IEC60601-1 2005 A1+C1+C2 2016-2-4 and or EN 60601-1:2006 3.1rd Edition 2xMOPP (6W max)
	CE Mark: tested to comply with EN 60601-1-2:2015 Medical electrical equipment Part 1-2: - Mark is on the label or Molded in the case
	CHINA SJ/T 11364-2014, China RoHS Chart: http://www.globtek.com/pdf/F-GT-DJD-8.4.1-006%20China%20RoHS%20Declaration%205-20-22.pdf
	null
	Indoor Use Only - Mark is on the label or Molded in the case
RoHS	Specifications of directive 2011/65/EU Annex VI (ROHS-2) with amendment 2015/863-EU (ROHS-3) http://www.ce-mark.com/Rohs%20final.pdf
	Ukraine UKRSepro (Document: www.globtek.com/html/iso_certificates/GT_Ukraine.pdf)
	WEEE: Complies with EU 2012/19/EU (http://ec.europa.eu/environment/waste/weee/index_en.htm) Mark is on the label or Molded in the case
	CE Certification CE Mark: tested to comply with EN 55032.2012+AC.2013 EN 61000-3-2.2014 EN 61000-3-3.2013 EN 60601-1-2.2015 EN 55024.2010
	FCC PART 15 CLASS B
	Book 60335 up to 36 Volts
No Logo	CB Report EN60950-1
No Logo Applicable	CB to 60335-1 5th Edition (Safety of Household and Similar Electrical Appliances, Part 1: General Requirements) CB Report/ Certificate IEC 60335-1:2010 Up to 36 volts only
	Fuse 60335 T2.0A 250VAC Up to 36 volts
	Efficiency: complies to section 301 of Energy Independence and Security Act (EISA) complies with Energy Star tier 2 (North America), ECP tier 2 (China), MEPS tier 2 (Australia), Code of Conduct (Europe)
LPS	Limited Power Source 60950
WDaE	Appliances can be used in warm damp equable climates
Conforms to ANSI/AAMI ES 60601-1:2005 Cert.to CAN/CSA Std. C22.2	cETLus ANSI_AAMI ES60601-1_2005
	Conforms to ANSI/UL Std. 60950-1 2nd Edition Cert. to CAN/CSA Std.C22.2 NO.60950-1 2nd Edition
	cETLus-Cert-4007497 ANSI/AAMI ES60601-1:2005/A1:2012 Issued: 2012/08/20 Medical electrical equipment ? Part 1: Amendment 1; CAN/CSAC22.2 No. 60601-1:14, Third Edition Issued: 2014/03/01 - Medical Electrical Equipment - Part 1
No Logo Applicable	CB for IEC 62368-1:2014 (Second Edition)
	Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [UL 62368-1:2014 Ed.2] Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [CSA C22.2#62368-1:2014 Ed.2]
	Certification # TC RU AR46.B.69004 Custom Union of Russia, Belarus and Kazakhstan
	UKCA Certification
Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1	Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1
	CCC Altitude up to 5000 m GB17625.1-2012, GB4943.1-2011, GB/T9254-2008 for GT*43007
	60601-1 3rd Operating Instructions
No Logo Applicable	CB report IEC60601-1 2005 A1+C1+C2 2016-2-4 and or EN 60601-1:2006 3.1rd Edition 2xMOPP (6W max)
	CE Mark: tested to comply with EN 60601-1-2:2015 Medical electrical equipment Part 1-2: - Mark is on the label or Molded in the case
	CHINA SJ/T 11364-2014, China RoHS Chart: http://www.globtek.com/pdf/F-GT-DJD-8.4.1-006%20China%20RoHS%20Declaration%205-20-22.pdf
	null
	Indoor Use Only - Mark is on the label or Molded in the case
RoHS	Specifications of directive 2011/65/EU Annex VI (ROHS-2) with amendment 2015/863-EU (ROHS-3) http://www.ce-mark.com/Rohs%20final.pdf
	Ukraine UKRSepro (Document: www.globtek.com/html/iso_certificates/GT_Ukraine.pdf)
	WEEE: Complies with EU 2012/19/EU (http://ec.europa.eu/environment/waste/weee/index_en.htm) Mark is on the label or Molded in the case
	CE Certification CE Mark: tested to comply with EN 55032.2012+AC.2013 EN 61000-3-2.2014 EN 61000-3-3.2013 EN 60601-1-2.2015 EN 55024.2010
	FCC PART 15 CLASS B
	Book 60335 up to 36 Volts
No Logo	CB Report EN60950-1
No Logo Applicable	CB to 60335-1 5th Edition (Safety of Household and Similar Electrical Appliances, Part 1: General Requirements) CB Report/ Certificate IEC 60335-1:2010 Up to 36 volts only
	Fuse 60335 T2.0A 250VAC Up to 36 volts
	Efficiency: complies to section 301 of Energy Independence and Security Act (EISA) complies with Energy Star tier 2 (North America), ECP tier 2 (China), MEPS tier 2 (Australia), Code of Conduct (Europe)
LPS	Limited Power Source 60950
WDaE	Appliances can be used in warm damp equable climates
Conforms to ANSI/AAMI ES 60601-1:2005 Cert.to CAN/CSA Std. C22.2	cETLus ANSI_AAMI ES60601-1_2005
	Conforms to ANSI/UL Std. 60950-1 2nd Edition Cert. to CAN/CSA Std.C22.2 NO.60950-1 2nd Edition
	cETLus-Cert-4007497 ANSI/AAMI ES60601-1:2005/A1:2012 Issued: 2012/08/20 Medical electrical equipment ? Part 1: Amendment 1; CAN/CSAC22.2 No. 60601-1:14, Third Edition Issued: 2014/03/01 - Medical Electrical Equipment - Part 1
No Logo Applicable	CB for IEC 62368-1:2014 (Second Edition)
	Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [UL 62368-1:2014 Ed.2] Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [CSA C22.2#62368-1:2014 Ed.2]
	Certification # TC RU AR46.B.69004 Custom Union of Russia, Belarus and Kazakhstan
	UKCA Certification
Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1	Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1
	CCC Altitude up to 5000 m GB17625.1-2012, GB4943.1-2011, GB/T9254-2008 for GT*43007
	60601-1 3rd Operating Instructions
No Logo Applicable	CB report IEC60601-1 2005 A1+C1+C2 2016-2-4 and or EN 60601-1:2006 3.1rd Edition 2xMOPP (6W max)
	CE Mark: tested to comply with EN 60601-1-2:2015 Medical electrical equipment Part 1-2: - Mark is on the label or Molded in the case
	CHINA SJ/T 11364-2014, China RoHS Chart: http://www.globtek.com/pdf/F-GT-DJD-8.4.1-006%20China%20RoHS%20Declaration%205-20-22.pdf
	null
	Indoor Use Only - Mark is on the label or Molded in the case
RoHS	Specifications of directive 2011/65/EU Annex VI (ROHS-2) with amendment 2015/863-EU (ROHS-3) http://www.ce-mark.com/Rohs%20final.pdf
	Ukraine UKRSepro (Document: www.globtek.com/html/iso_certificates/GT_Ukraine.pdf)
	WEEE: Complies with EU 2012/19/EU (http://ec.europa.eu/environment/waste/weee/index_en.htm) Mark is on the label or Molded in the case
	CE Certification CE Mark: tested to comply with EN 55032.2012+AC.2013 EN 61000-3-2.2014 EN 61000-3-3.2013 EN 60601-1-2.2015 EN 55024.2010
	FCC PART 15 CLASS B
	Book 60335 up to 36 Volts
No Logo	CB Report EN60950-1
No Logo Applicable	CB to 60335-1 5th Edition (Safety of Household and Similar Electrical Appliances, Part 1: General Requirements) CB Report/ Certificate IEC 60335-1:2010 Up to 36 volts only
	Fuse 60335 T2.0A 250VAC Up to 36 volts
	Efficiency: complies to section 301 of Energy Independence and Security Act (EISA) complies with Energy Star tier 2 (North America), ECP tier 2 (China), MEPS tier 2 (Australia), Code of Conduct (Europe)
LPS	Limited Power Source 60950
WDaE	Appliances can be used in warm damp equable climates
Conforms to ANSI/AAMI ES 60601-1:2005 Cert.to CAN/CSA Std. C22.2	cETLus ANSI_AAMI ES60601-1_2005
	Conforms to ANSI/UL Std. 60950-1 2nd Edition Cert. to CAN/CSA Std.C22.2 NO.60950-1 2nd Edition
	cETLus-Cert-4007497 ANSI/AAMI ES60601-1:2005/A1:2012 Issued: 2012/08/20 Medical electrical equipment ? Part 1: Amendment 1; CAN/CSAC22.2 No. 60601-1:14, Third Edition Issued: 2014/03/01 - Medical Electrical Equipment - Part 1
No Logo Applicable	CB for IEC 62368-1:2014 (Second Edition)
	Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [UL 62368-1:2014 Ed.2] Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [CSA C22.2#62368-1:2014 Ed.2]
	Certification # TC RU AR46.B.69004 Custom Union of Russia, Belarus and Kazakhstan
	UKCA Certification
Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1	Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1
	CCC Altitude up to 5000 m GB17625.1-2012, GB4943.1-2011, GB/T9254-2008 for GT*43007
	60601-1 3rd Operating Instructions
No Logo Applicable	CB report IEC60601-1 2005 A1+C1+C2 2016-2-4 and or EN 60601-1:2006 3.1rd Edition 2xMOPP (6W max)
	CE Mark: tested to comply with EN 60601-1-2:2015 Medical electrical equipment Part 1-2: - Mark is on the label or Molded in the case
	CHINA SJ/T 11364-2014, China RoHS Chart: http://www.globtek.com/pdf/F-GT-DJD-8.4.1-006%20China%20RoHS%20Declaration%205-20-22.pdf
	null
	Indoor Use Only - Mark is on the label or Molded in the case
RoHS	Specifications of directive 2011/65/EU Annex VI (ROHS-2) with amendment 2015/863-EU (ROHS-3) http://www.ce-mark.com/Rohs%20final.pdf
	Ukraine UKRSepro (Document: www.globtek.com/html/iso_certificates/GT_Ukraine.pdf)
	WEEE: Complies with EU 2012/19/EU (http://ec.europa.eu/environment/waste/weee/index_en.htm) Mark is on the label or Molded in the case
	CE Certification CE Mark: tested to comply with EN 55032.2012+AC.2013 EN 61000-3-2.2014 EN 61000-3-3.2013 EN 60601-1-2.2015 EN 55024.2010
	FCC PART 15 CLASS B
	Book 60335 up to 36 Volts
No Logo	CB Report EN60950-1
No Logo Applicable	CB to 60335-1 5th Edition (Safety of Household and Similar Electrical Appliances, Part 1: General Requirements) CB Report/ Certificate IEC 60335-1:2010 Up to 36 volts only
	Fuse 60335 T2.0A 250VAC Up to 36 volts
	Efficiency: complies to section 301 of Energy Independence and Security Act (EISA) complies with Energy Star tier 2 (North America), ECP tier 2 (China), MEPS tier 2 (Australia), Code of Conduct (Europe)
LPS	Limited Power Source 60950
WDaE	Appliances can be used in warm damp equable climates
Conforms to ANSI/AAMI ES 60601-1:2005 Cert.to CAN/CSA Std. C22.2	cETLus ANSI_AAMI ES60601-1_2005
	Conforms to ANSI/UL Std. 60950-1 2nd Edition Cert. to CAN/CSA Std.C22.2 NO.60950-1 2nd Edition
	cETLus-Cert-4007497 ANSI/AAMI ES60601-1:2005/A1:2012 Issued: 2012/08/20 Medical electrical equipment ? Part 1: Amendment 1; CAN/CSAC22.2 No. 60601-1:14, Third Edition Issued: 2014/03/01 - Medical Electrical Equipment - Part 1
No Logo Applicable	CB for IEC 62368-1:2014 (Second Edition)
	Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [UL 62368-1:2014 Ed.2] Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [CSA C22.2#62368-1:2014 Ed.2]
	Certification # TC RU AR46.B.69004 Custom Union of Russia, Belarus and Kazakhstan
	UKCA Certification
Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1	Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1
	CCC Altitude up to 5000 m GB17625.1-2012, GB4943.1-2011, GB/T9254-2008 for GT*43007
	60601-1 3rd Operating Instructions
No Logo Applicable	CB report IEC60601-1 2005 A1+C1+C2 2016-2-4 and or EN 60601-1:2006 3.1rd Edition 2xMOPP (6W max)
	CE Mark: tested to comply with EN 60601-1-2:2015 Medical electrical equipment Part 1-2: - Mark is on the label or Molded in the case
	CHINA SJ/T 11364-2014, China RoHS Chart: http://www.globtek.com/pdf/F-GT-DJD-8.4.1-006%20China%20RoHS%20Declaration%205-20-22.pdf
	null
	Indoor Use Only - Mark is on the label or Molded in the case
RoHS	Specifications of directive 2011/65/EU Annex VI (ROHS-2) with amendment 2015/863-EU (ROHS-3) http://www.ce-mark.com/Rohs%20final.pdf
	Ukraine UKRSepro (Document: www.globtek.com/html/iso_certificates/GT_Ukraine.pdf)
	WEEE: Complies with EU 2012/19/EU (http://ec.europa.eu/environment/waste/weee/index_en.htm) Mark is on the label or Molded in the case
	CE Certification CE Mark: tested to comply with EN 55032.2012+AC.2013 EN 61000-3-2.2014 EN 61000-3-3.2013 EN 60601-1-2.2015 EN 55024.2010
	FCC PART 15 CLASS B
	Book 60335 up to 36 Volts
No Logo	CB Report EN60950-1
No Logo Applicable	CB to 60335-1 5th Edition (Safety of Household and Similar Electrical Appliances, Part 1: General Requirements) CB Report/ Certificate IEC 60335-1:2010 Up to 36 volts only
	Fuse 60335 T2.0A 250VAC Up to 36 volts
	Efficiency: complies to section 301 of Energy Independence and Security Act (EISA) complies with Energy Star tier 2 (North America), ECP tier 2 (China), MEPS tier 2 (Australia), Code of Conduct (Europe)
LPS	Limited Power Source 60950
WDaE	Appliances can be used in warm damp equable climates
Conforms to ANSI/AAMI ES 60601-1:2005 Cert.to CAN/CSA Std. C22.2	cETLus ANSI_AAMI ES60601-1_2005
	Conforms to ANSI/UL Std. 60950-1 2nd Edition Cert. to CAN/CSA Std.C22.2 NO.60950-1 2nd Edition
	cETLus-Cert-4007497 ANSI/AAMI ES60601-1:2005/A1:2012 Issued: 2012/08/20 Medical electrical equipment ? Part 1: Amendment 1; CAN/CSAC22.2 No. 60601-1:14, Third Edition Issued: 2014/03/01 - Medical Electrical Equipment - Part 1
No Logo Applicable	CB for IEC 62368-1:2014 (Second Edition)
	Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [UL 62368-1:2014 Ed.2] Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [CSA C22.2#62368-1:2014 Ed.2]
	Certification # TC RU AR46.B.69004 Custom Union of Russia, Belarus and Kazakhstan
	UKCA Certification
Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1	Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1
	CCC Altitude up to 5000 m GB17625.1-2012, GB4943.1-2011, GB/T9254-2008 for GT*43007
	60601-1 3rd Operating Instructions
No Logo Applicable	CB report IEC60601-1 2005 A1+C1+C2 2016-2-4 and or EN 60601-1:2006 3.1rd Edition 2xMOPP (6W max)
	CE Mark: tested to comply with EN 60601-1-2:2015 Medical electrical equipment Part 1-2: - Mark is on the label or Molded in the case
	CHINA SJ/T 11364-2014, China RoHS Chart: http://www.globtek.com/pdf/F-GT-DJD-8.4.1-006%20China%20RoHS%20Declaration%205-20-22.pdf
	null
	Indoor Use Only - Mark is on the label or Molded in the case
RoHS	Specifications of directive 2011/65/EU Annex VI (ROHS-2) with amendment 2015/863-EU (ROHS-3) http://www.ce-mark.com/Rohs%20final.pdf
	Ukraine UKRSepro (Document: www.globtek.com/html/iso_certificates/GT_Ukraine.pdf)
	WEEE: Complies with EU 2012/19/EU (http://ec.europa.eu/environment/waste/weee/index_en.htm) Mark is on the label or Molded in the case
	CE Certification CE Mark: tested to comply with EN 55032.2012+AC.2013 EN 61000-3-2.2014 EN 61000-3-3.2013 EN 60601-1-2.2015 EN 55024.2010
	FCC PART 15 CLASS B
	Book 60335 up to 36 Volts
No Logo	CB Report EN60950-1
No Logo Applicable	CB to 60335-1 5th Edition (Safety of Household and Similar Electrical Appliances, Part 1: General Requirements) CB Report/ Certificate IEC 60335-1:2010 Up to 36 volts only
	Fuse 60335 T2.0A 250VAC Up to 36 volts
	Efficiency: complies to section 301 of Energy Independence and Security Act (EISA) complies with Energy Star tier 2 (North America), ECP tier 2 (China), MEPS tier 2 (Australia), Code of Conduct (Europe)
LPS	Limited Power Source 60950
WDaE	Appliances can be used in warm damp equable climates
Conforms to ANSI/AAMI ES 60601-1:2005 Cert.to CAN/CSA Std. C22.2	cETLus ANSI_AAMI ES60601-1_2005
	Conforms to ANSI/UL Std. 60950-1 2nd Edition Cert. to CAN/CSA Std.C22.2 NO.60950-1 2nd Edition
	cETLus-Cert-4007497 ANSI/AAMI ES60601-1:2005/A1:2012 Issued: 2012/08/20 Medical electrical equipment ? Part 1: Amendment 1; CAN/CSAC22.2 No. 60601-1:14, Third Edition Issued: 2014/03/01 - Medical Electrical Equipment - Part 1
No Logo Applicable	CB for IEC 62368-1:2014 (Second Edition)
	Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [UL 62368-1:2014 Ed.2] Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [CSA C22.2#62368-1:2014 Ed.2]
	Certification # TC RU AR46.B.69004 Custom Union of Russia, Belarus and Kazakhstan
	UKCA Certification
Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1	Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1
	CCC Altitude up to 5000 m GB17625.1-2012, GB4943.1-2011, GB/T9254-2008 for GT*43007
	60601-1 3rd Operating Instructions
No Logo Applicable	CB report IEC60601-1 2005 A1+C1+C2 2016-2-4 and or EN 60601-1:2006 3.1rd Edition 2xMOPP (6W max)
	CE Mark: tested to comply with EN 60601-1-2:2015 Medical electrical equipment Part 1-2: - Mark is on the label or Molded in the case
	CHINA SJ/T 11364-2014, China RoHS Chart: http://www.globtek.com/pdf/F-GT-DJD-8.4.1-006%20China%20RoHS%20Declaration%205-20-22.pdf
	null
	Indoor Use Only - Mark is on the label or Molded in the case
RoHS	Specifications of directive 2011/65/EU Annex VI (ROHS-2) with amendment 2015/863-EU (ROHS-3) http://www.ce-mark.com/Rohs%20final.pdf
	Ukraine UKRSepro (Document: www.globtek.com/html/iso_certificates/GT_Ukraine.pdf)
	WEEE: Complies with EU 2012/19/EU (http://ec.europa.eu/environment/waste/weee/index_en.htm) Mark is on the label or Molded in the case
	CE Certification CE Mark: tested to comply with EN 55032.2012+AC.2013 EN 61000-3-2.2014 EN 61000-3-3.2013 EN 60601-1-2.2015 EN 55024.2010
	FCC PART 15 CLASS B
	Book 60335 up to 36 Volts
No Logo	CB Report EN60950-1
No Logo Applicable	CB to 60335-1 5th Edition (Safety of Household and Similar Electrical Appliances, Part 1: General Requirements) CB Report/ Certificate IEC 60335-1:2010 Up to 36 volts only
	Fuse 60335 T2.0A 250VAC Up to 36 volts
	Efficiency: complies to section 301 of Energy Independence and Security Act (EISA) complies with Energy Star tier 2 (North America), ECP tier 2 (China), MEPS tier 2 (Australia), Code of Conduct (Europe)
LPS	Limited Power Source 60950
WDaE	Appliances can be used in warm damp equable climates
Conforms to ANSI/AAMI ES 60601-1:2005 Cert.to CAN/CSA Std. C22.2	cETLus ANSI_AAMI ES60601-1_2005
	Conforms to ANSI/UL Std. 60950-1 2nd Edition Cert. to CAN/CSA Std.C22.2 NO.60950-1 2nd Edition
	cETLus-Cert-4007497 ANSI/AAMI ES60601-1:2005/A1:2012 Issued: 2012/08/20 Medical electrical equipment ? Part 1: Amendment 1; CAN/CSAC22.2 No. 60601-1:14, Third Edition Issued: 2014/03/01 - Medical Electrical Equipment - Part 1
No Logo Applicable	CB for IEC 62368-1:2014 (Second Edition)
	Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [UL 62368-1:2014 Ed.2] Audio/Video, Information And Communication Technology Equipment - Part 1: Safety Requirements [CSA C22.2#62368-1:2014 Ed.2]
	Certification # TC RU AR46.B.69004 Custom Union of Russia, Belarus and Kazakhstan
	UKCA Certification
Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1	Conforms to UL STD. 62368-1 Certified to CSA STD C22.2 NO.62368-1
	CCC Altitude up to 5000 m GB17625.1-2012, GB4943.1-2011, GB/T9254-2008 for GT*43007
	60601-1 3rd Operating Instructions
No Logo Applicable	CB report IEC60601-1 2005 A1+C1+C2 2016-2-4 and or EN 60601-1:2006 3.1rd Edition 2xMOPP (6W max)
	CE Mark: tested to comply with EN 60601-1-2:2015 Medical electrical equipment Part 1-2: - Mark is on the label or Molded in the case
	CHINA SJ/T 11364-2014, China RoHS Chart: http://www.globtek.com/pdf/F-GT-DJD-8.4.1-006%20China%20RoHS%20Declaration%205-20-22.pdf
	null
	Indoor Use Only - Mark is on the label or Molded in the case
RoHS	Specifications of directive 2011/65/EU Annex VI (ROHS-2) with amendment 2015/863-EU (ROHS-3) http://www.ce-mark.com/Rohs%20final.pdf
	Ukraine UKRSepro (Document: www.globtek.com/html/iso_certificates/GT_Ukraine.pdf)
	WEEE: Complies with EU 2012/19/EU (http://ec.europa.eu/environment/waste/weee/index_en.htm) Mark is on the label or Molded in the case
	CE Certification CE Mark: tested to comply with EN 55032.2012+AC.2013 EN 61000-3-2.2014 EN 61000-3-3.2013 EN 60601-1-2.2015 EN 55024.2010
	FCC PART 15 CLASS B
	Book 60335 up to 36 Volts
No Logo	CB Report EN60950-1
No Logo Applicable	CB to 60335-1 5th Edition (Safety of Household and Similar Electrical Appliances, Part 1: General Requirements) CB Report/ Certificate IEC 60335-1:2010 Up to 36 volts only
	Fuse 60335 T2.0A 250VAC Up to 36 volts
	Efficiency: complies to section 301 of Energy Independence and Security Act (EISA) complies with Energy Star tier 2 (North America), ECP tier 2 (China), MEPS tier 2 (Australia), Code of Conduct (Europe)
LPS	Limited Power Source 60950
WDaE	Appliances can be used in warm damp equable climates
Conforms to ANSI/AAMI ES 60601-1:2005 Cert.to CAN/CSA Std. C22.2	cETLus ANSI_AAMI ES60601-1_2005
	Conforms to ANSI/UL Std. 60950-1 2nd Edition Cert. to CAN/CSA Std.C22.2 NO.60950-1 2nd Edition
	cETLus-Cert-4007497 ANSI/AAMI ES60601-1:2005/A1:2012 Issued: 2012/08/20 Medical electrical equipment ? Part 1: Amendment 1; CAN/CSAC22.2 No. 60601-1:14, Third Edition Issued: 2014/03/01 - Medical Electrical Equipment - Part 1

GTM43007-CWWVV-FW Open Frame/Internal ICT / ITE / Medical Power Supply

Request Info
