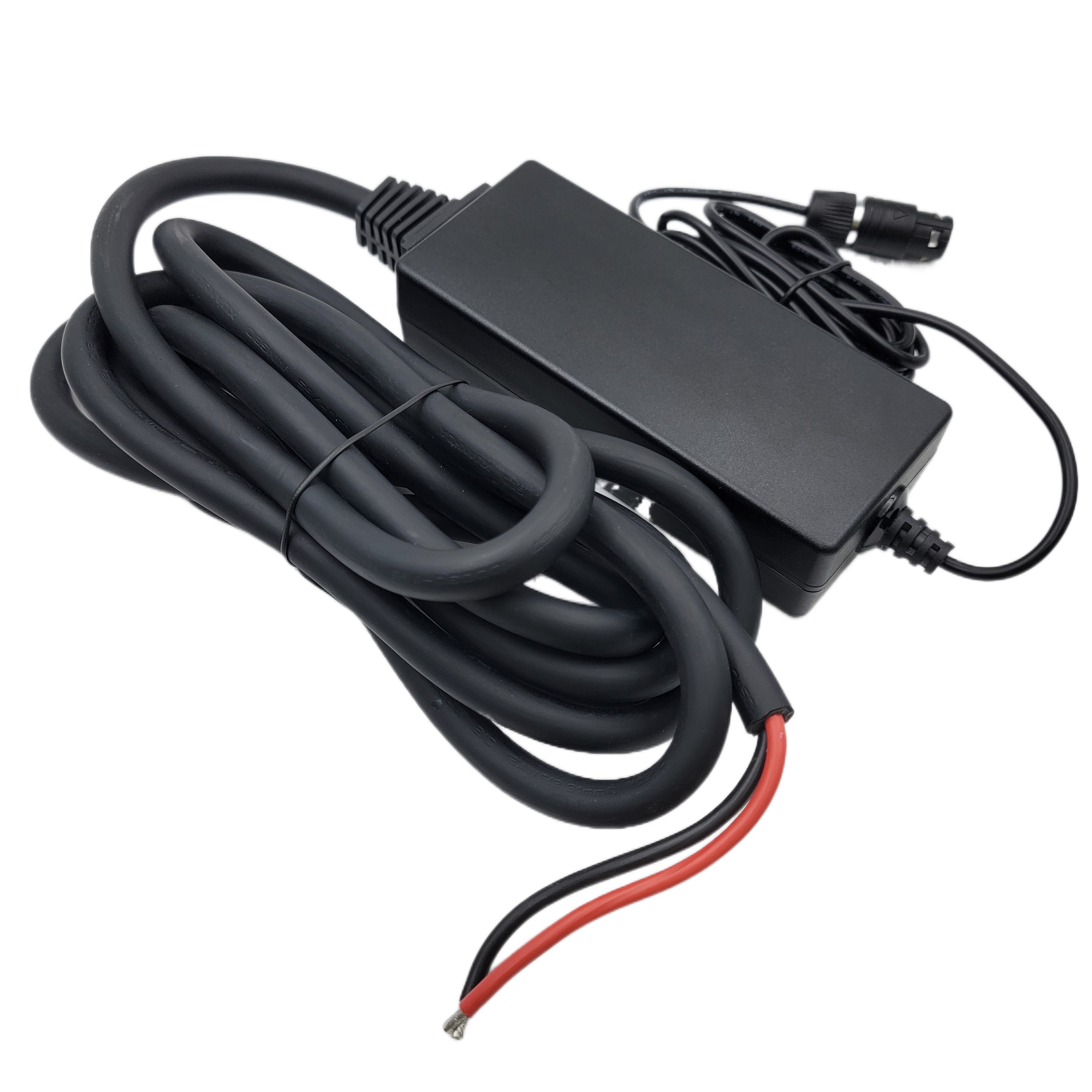

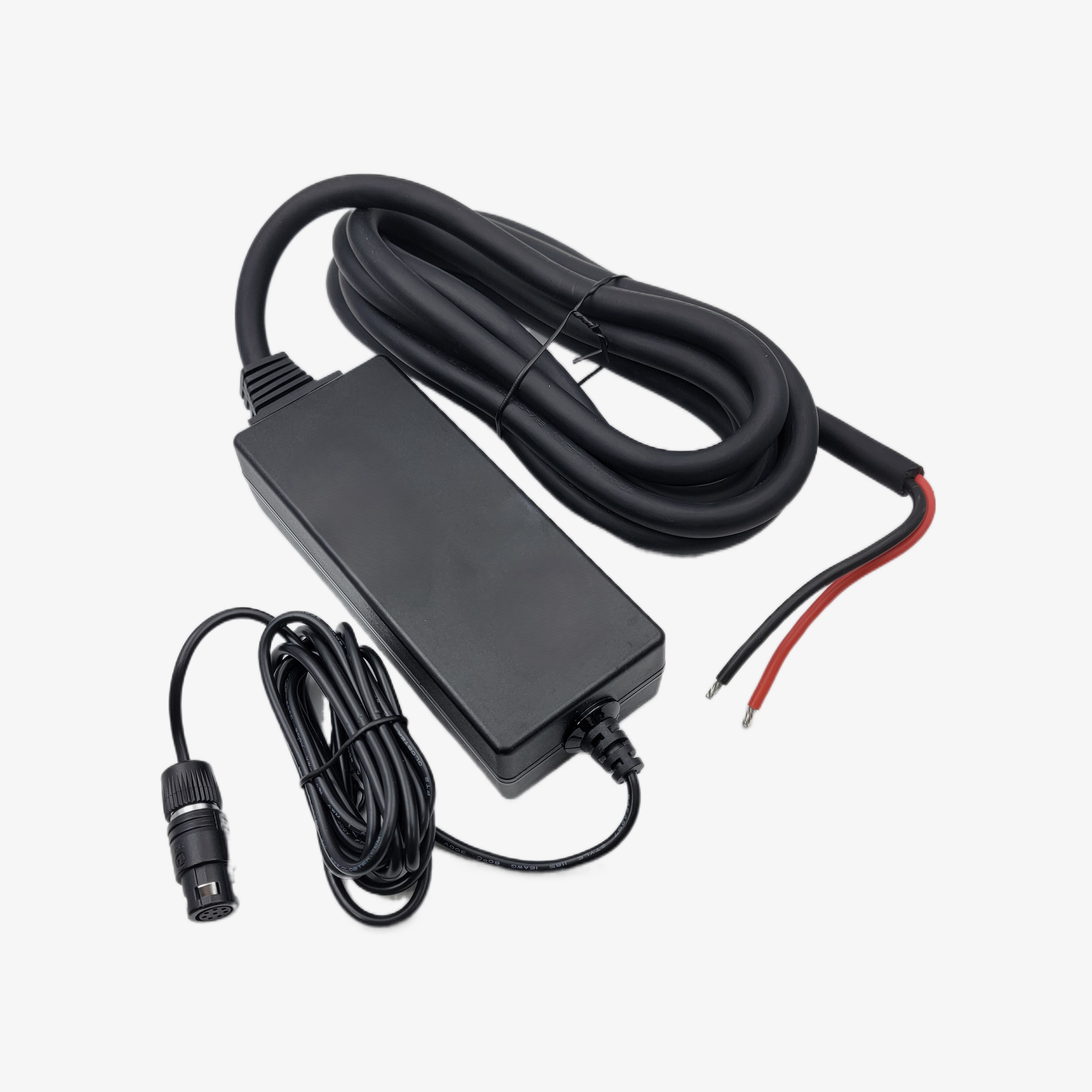

GTD9X1002-WWWVV-TW
GTD9X1002-WWWVV-TW, ICT / ITE / Medical Power Supply/Class 2/Household Power Supply, 60601-1-4th Ed. , Desktop/External, DC-DC, , Input Rating: 12-36V, Lead Wire, see Blades/Cord Included for description, Output Rating: 100 Watts, Power rating with convection cooling (W) , 12-54V in 0.1V increments, Approvals: China RoHS; Double Insulation; PSE; RoHS; Ukraine; VCCI; WEEE; UKCA;GTD9X1002-WWWVV-TW, ICT / ITE / Medical Power Supply/Class 2/Household Power Supply, 60601-1-4th Ed. , Desktop/External, DC-DC, , Input Rating: 12-36V, Lead Wire, see Blades/Cord Included for description, Output Rating: 100 Watts, Power rating with convection cooling (W) , 12-54V in 0.1V increments, Approvals: China RoHS; Double Insulation; PSE; RoHS; Ukraine; VCCI; WEEE; UKCA;
Information
Model NumberGTD9X1002-WWWVV-TW
CE EC-Declaration for Medicalhttps://cs.globtek.info/ec_declaration?id=a0O0c00000QD1HqEAL
CE EC-Declaration for Industrial/Commercial/ITEhttps://cs.globtek.info/ec_declaration?id=a0O0c00000QD1HqEAL
CE EC-Declaration for HouseholdContact GlobTek for more information
UKCA-Declaration for Medicalhttps://cs.globtek.info/ukca_declaration?id=a0O0c00000QD1HqEAL
UKCA-Declaration for Industrial/Commercial/ITEhttps://cs.globtek.info/ukca_declaration?id=a0O0c00000QD1HqEAL
UKCA-Declaration for HouseholdContact GlobTek for more information
Morocco SDoC Declarationhttps://cs.globtek.info/Morocco_SDoC_Declaration?id=a0O0c00000QD1HqEAL
RoHS/RoHS3 Declarationhttps://www.globtek.com/pdf/rohs_cert/a0O0c00000QD1HqEAL
Prop 65 Statementhttps://www.globtek.com/r2/PH7CNf
REACH Declarationhttps://www.globtek.com/r2/eM2co8
Conflict Minerals Declarationhttps://www.globtek.com/r2/vZY8R5
Model Parameters
TypeDesktop/External
TechnologyDC-DC
CategoryICT / ITE / Medical Power Supply/Class 2/Household Power Supply
Input Voltage Range (V)12-36V
Max Input Current (A)12.0A
Max Output Power Rating (W)100
Output Voltage Range (V)12-54
Efficiency
Ingress ProtectionIP43
Size (mm)149.4 x 62.6 x 33.5
Enclosure




User-added image


Rating Table
Preferred ratings shown below.
Custom output voltages available in 0.1V increment from the minimum voltage listed to the maximum voltage listed; contact sales.
Model Number (Final ordering #/Part No to be defined)Voltage (V)Current (A)Power (W)RFQ
GTD9X1002-6015-TW*15460
GTD9X1002-10015-TP (do not use)*156.66699.99
GTD9X1002-10012-TW*128.3399.96
GTD9X1002-10015-TW*156.66699.99
GTD9X1002-10018-TW*185.5599.9
GTD9X1002-10019-TW*195.263100
GTD9X1002-10022-TW*224.54599.99
GTD9X1002-10024-TW*244.1699.84
GTD9X1002-10028-TW*283.57199.99
GTD9X1002-10036-TW*362.7799.72
GTD9X1002-10054-TW*361.8599.9
GTD9X1002-10048-TW*482.0899.84
GTD9X1002-10030-TW*483.3399.9
GTD9X1002-WWWVV-TW-XXXXCUSTOMCUSTOMCUSTOM
* (Final ordering #/Part No to be defined)
Specifications

Features

  • 2 x MOPP medical isolation
  • Aerospace qualified per RTCA/DO-160G, EMS-ready per IEC60601-1-12
  • Wide "universal" DC input range
  • Enhanced transient and automotive/aerospace surge handling capability
  • Shock & vibration in accordance with IEC60601-1-12 (EMS) & DO-160G

Input

Input Voltage Range:12 - 36VDC (nameplate, nominal)
10.2 - 39.6VDC (rated, -15% / +10%)

Plus short-term capability between 9.0 - 10.2V. (Duration is limited by temperature rise.)
Input Current:9.5A (typ.) @ 12VDC / 100W
12.0A (max.) @ 10.2VDC / 100W
17.5A (max.) @ 9.0VDC / 120W
No Load Input Power:< 0.5W
Efficiency:87% @ 12VDC, 90% @ 24VDC typ., at "typical" 60W usage scenario
Inrush Current:< 1.5A @ 14VDC, satisfies DO-160G, Section 16.7.5.2

Output

Turn-on Delay:< 2 seconds
Output Regulation+1.5% / -4% max. (measured at the output connector)
Line Regulation:± 0.1 % typ.  (measured at the output connector)
Ripple:1% max. (using a 10µF low-ESR electrolytic cap + 0.1µF ceramic cap, measured @ 20MHz BW, at the output connector)
Transient Response (Step Load):10% max. deviation, 2ms max. recovery time (with 100W load step)
Transient Response
(Load Dump):		5% max. deviation, 100ms max. recovery time (with 100W load dump)

Protections

Input Protection:Input line fusing (high-breaking capacity)
Reverse polarity protection (up to -36VDC)
Input Over-Voltage Protection:"Ride-through" input over-voltage protection without interruption of output voltage for high-energy surges up to 85VDC
(See 'Maximum Allowable Surge Duration' plot for details. See 'EMC' section for other conditions.)
Output cycles on/off IF (50V < Vin < 85V) AND IF (surge duration is outside the SOA region in the "Maximum Allowable Surge Duration" plot), 1.5s (typ.) delay between restart attempts
Input Under-Voltage Protection:Shut down @ 7.4V (typ.), Restore @ 9.0V (max.)
Output Over-Voltage Protection:110 - 130%, Latching, cycle DC input voltage to reset
Output Over-Current Protection:110 - 150%, Auto-recovery
Output Short-Circuit Protection:Auto-recovery
Over-Temperature Protection:Auto-recovery

Environmental

MTBF:> 1,500,000 hours @ 25°C ambient (Telcordia SR-332, Issue 3)
> 750,000 hours @ 50°C ambient (Telcordia SR-332, Issue 3)
Operating Temperature:-10°C to 40°C (100W)
Check derating curve for T > 40°C.
Storage Temperature:-40°C to 80°C
Humidity:0% to 95% relative humidity, non-condensing
Altitude5000m
Cooling:Natural convection
Shock:End use handling: Half-sine, <3ms duration, 1.65m/s, 3 shocks per face
Transportation simulation: Trapezoid, 60G acceleration, 5.75m/sec, 3 shocks per face
General shock: Half-sine, 100G acceleration, 6ms duration, 3 shocks per face
Vibration:IEC60601-1-12, Section 10.1.3, Clause B
DO-160G, Section 8, Procedure 8.8, Category U, Zone 1A
Bump:EN1789, Clause 6.4.1
Drop:EN1789, Clause 6.4.2
Ingress Protection:IP43
RoHS:Complies with EU 2015/863 and China SJ/T 11363-2006

Safety

Compliant Standards:General medical: IEC60601-1
Emergency medical services (EMS): IEC60601-1-12
Information & communications technologies (ICT): IEC62368-1
Dielectric Withstand Voltage (Hi-Pot):4300VDC from input to output,  1 minute
4300VDC from input to case, 1 minute
500VAC from output to case, 1 minute
Output Leakage Current:NC: 8µA max.
SFC: 40µA max.
Means of Protection (Primary-to-Secondary):2 x MOPP
Protection Class:Class II (reinforced insulation)


EMC

Compliant Standards:Medical: IEC60601-1-2
Airborne Equipment: RTCA DO-160G
Aftermarket automotive: EN50498
Conducted Emissions:CISPR25, Class 3
DO-160G, Section 21.4, Category M
(measured with resistive load)
Radiated Emissions:CISPR25, Class 3
DO-160G, Section 21.5, Category M
EN50498
(measured with resistive load)
Electrical Transient Conduction Along Supply Lines:ISO7637-2 (Test conditions for  12V nom.  / 24V nom. systems, respectively)
   Test Pulse 1:  - 100V / -600V (5,000 pulses)
   Test Pulse 2a: + 50V / + 50V (5,000 pulses)
   Test Pulse 2b: + 10V / + 20V (10 pulses)
   Test Pulse 3a: -150V / - 200V (1 hour)
   Test Pulse 3b: +100V / + 200V (1 hour)
   Test Pulse 4: -6V / -12V (1 pulse)

ISO16750-2 Load Dump:
   12V nom. system: Test Pulse A : Us = 87V, Ri = 2Ω, td = 400ms
   24V nom. system: Test Pulse B:  Us* = 65V, Ri = 2Ω, td = 350ms
Input Voltage Interruptions, Dips, Surges and Spikes (DO-160G):DO-160G, Section 16.6.1.3, Category Z (Momentary interruption)
DO-160G, Section 16.6.1.4, Category Z (Normal surge)
DO-160G, Section 16.6.2.4, Category Z (Abnormal surge)
DO-160G, Section 17, Category B (Spikes)
Electrostatic Discharge (ESD) Immunity:EN61000-4-2, 10KV contact discharge, 18KV air discharge, Criterion A
Radiated RF Immunity:EN61000-4-3, 20V/m @ 80MHz - 2.7GHz, 80% 1KHz AM, 80% 5Hz AM, Criterion A
DO-160G, Section 20.5, Category R
Conducted RF Immunity:EN61000-4-6, 3VRMS & 6VRMS (ISM & Amateur bands), 80% 1KHz AM, Criterion A
DO-160G, Section 20.4, Category R

Enclosure

Housing:High impact plastic, 94V0 polycarbonate, non-vented
Markings:Adhesive backed label or laser engraving


User-added image

Derating CurveUser-added image

Qty (ea.)/Carton60
Individual Box/Gift Box Size (mm)Egg Crate
Individual Box/Gift Box Color
Master Carton Size (mm)480 x 450 x 205
Gross Weight (kg)15.2
Label Width (mm)50.0
Label Height (mm)110.0
Input Configuration
DescriptionLead Wire, see Blades/Cord Included for descriptionUser-added image
Output Configuration
Common output connector options:
Click to add to your request.
L Type (Coaxial 5.5x2.5mm plug)
C Type (Coaxial 5.5x2.1mm plug)
K Type (Coaxial 3.5x1.3mm plug)
LL Type (5.5x2.5mm Locking 760k type)
CL Type (5.5x2.1mm Locking S761k type)
Magnetic Connector
L Type (Coaxial 5.5x2.5mm plug)C Type (Coaxial 5.5x2.1mm plug)K Type (Coaxial 3.5x1.3mm plug)LL Type (5.5x2.5mm Locking 760k type)CL Type (5.5x2.1mm Locking S761k type)Magnetic Connector
YL3 Type (KPPX-3P)
YL4 Type (KPPX-4P)
EJ1/2/3/4/5 (EIAJ RC-5320A type connectors)
MSB Type (Micro USB)
Custom design
YL3 Type (KPPX-3P)YL4 Type (KPPX-4P)EJ1/2/3/4/5 (EIAJ RC-5320A type connectors)MSB Type (Micro USB)Inquire for custom design

Comprehensive list of GlobTek output cordset options

Contact GlobTek for your specific requirements or custom solutions.

Approvals

Below follows a link to the latest regulatory certifications and marks for this specific product. National standards as well as certification schemes are constantly changing and so is the set of certification marks and symbols applicable to this product. Various standards, marks and symbols, and certificates are subject to change at any time without notice.

Additional standards or unique country certifications are available upon request. Please contact Globtek to request a quotation.

LogoDescription
Medical 4th Ed.EN/IEC 60601-1-2, 4th Edition (Please visit EMC reports for further info)
User-added imageUkraine UKRSepro (Document: www.globtek.com/html/iso_certificates/GT_Ukraine.pdf)
User-added imageJapan: Voluntary Control Council for Interference (VCCI)
 User-added imageWEEE: Complies with EU 2012/19/EU (http://ec.europa.eu/environment/waste/weee/index_en.htm) Mark is on the label or Molded in the case
User-added imageIndoor Use Only - Mark is on the label or Molded in the case
User-added imageUKCA Certification
User-added imageCHINA SJ/T 11364-2014, China RoHS Chart: http://www.globtek.com/pdf/F-GT-DJD-8.4.1-006%20China%20RoHS%20Declaration%205-20-22.pdf
User-added image
User-added imageJAPAN TUV R-PSE, Cert. No. JD 50469658, to J62368-1(H30) , J55032(H29),J3000(H25)[15V or less]. Please reference the following website for guidelines on PSE regulations: https://www.globtek.com/r2/Szj4Vb
RoHSSpecifications of directive 2011/65/EU Annex VI (ROHS-2) with amendment 2015/863-EU (ROHS-3) http://www.ce-mark.com/Rohs%20final.pdf
